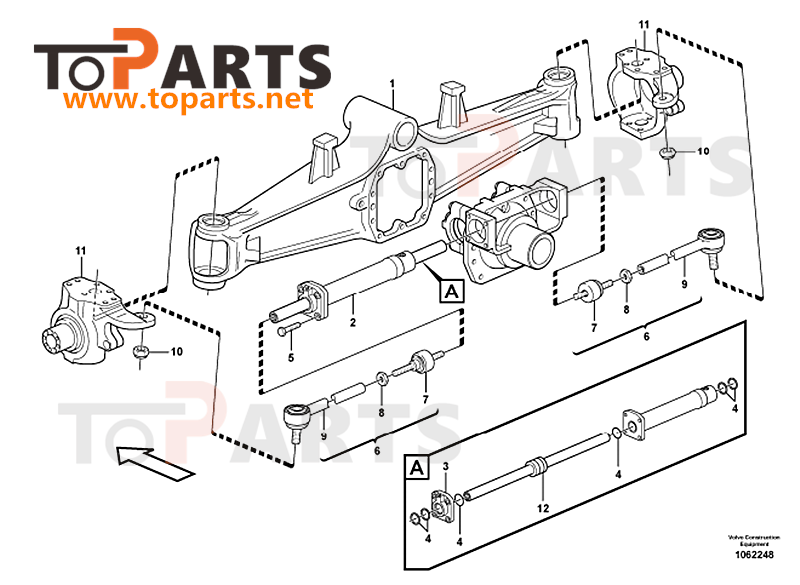

Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
1 |
|
1 |
Front axle |
|
2 |
VOE11716717 |
1 |
•Steering cylinder |
|
3 |
VOE11716719 |
1 |
••Cylinder head |
|
4 |
VOE11716720 |
1 |
••Sealing Kit |
|
5 |
VOE11716623 |
4 |
•Screw |
|
6 |
VOE15189125 |
2 |
•Steering link |
|
7 |
VOE11988565 |
2 |
••Steering link |
|
8 |
VOE11988566 |
2 |
••Nut |
|
9 |
VOE11988567 |
2 |
••Steering link |
|
10 |
VOE11988563 |
2 |
•Nut |
|
11 |
|
2 |
•Housing |
|
12 |
VOE17219978 |
|
•Rod |
Product Description

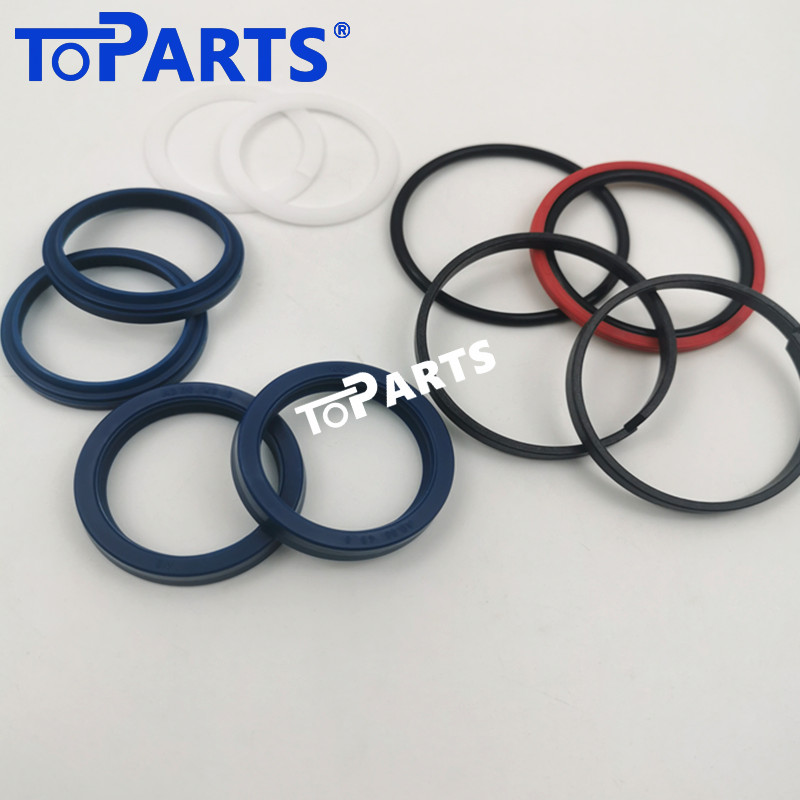

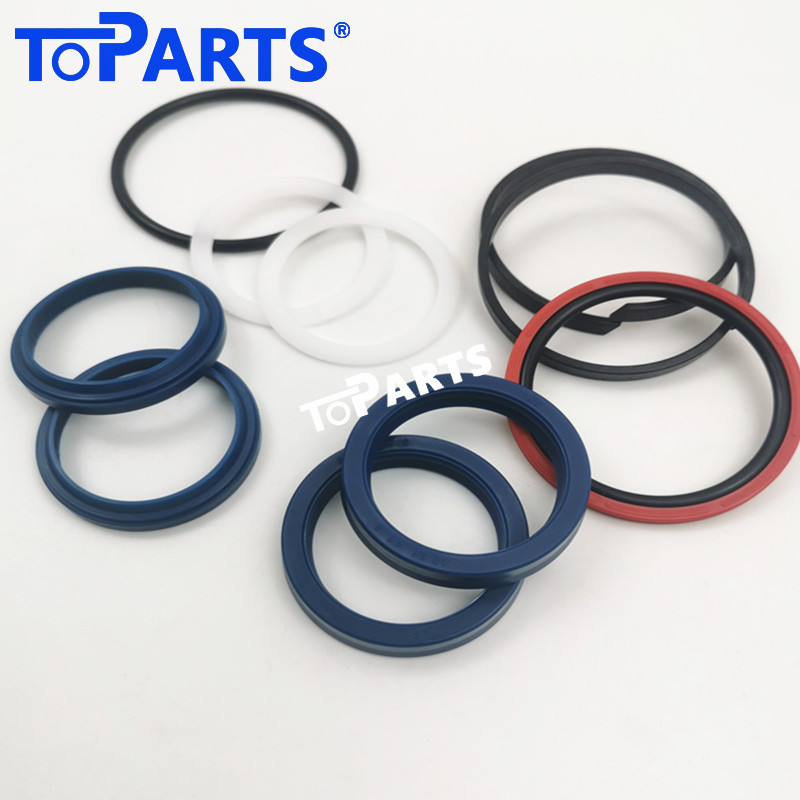

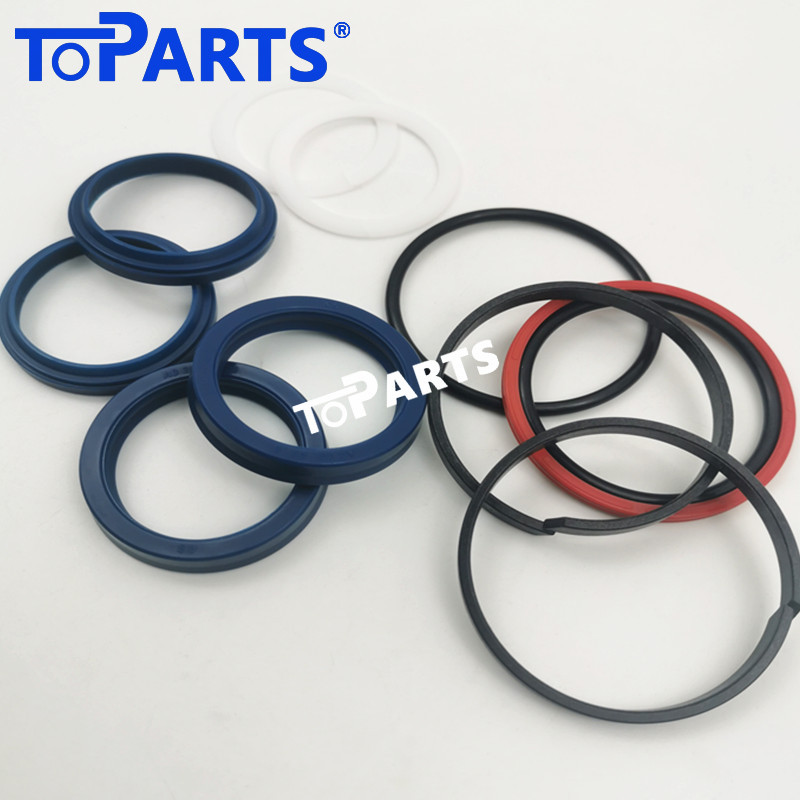

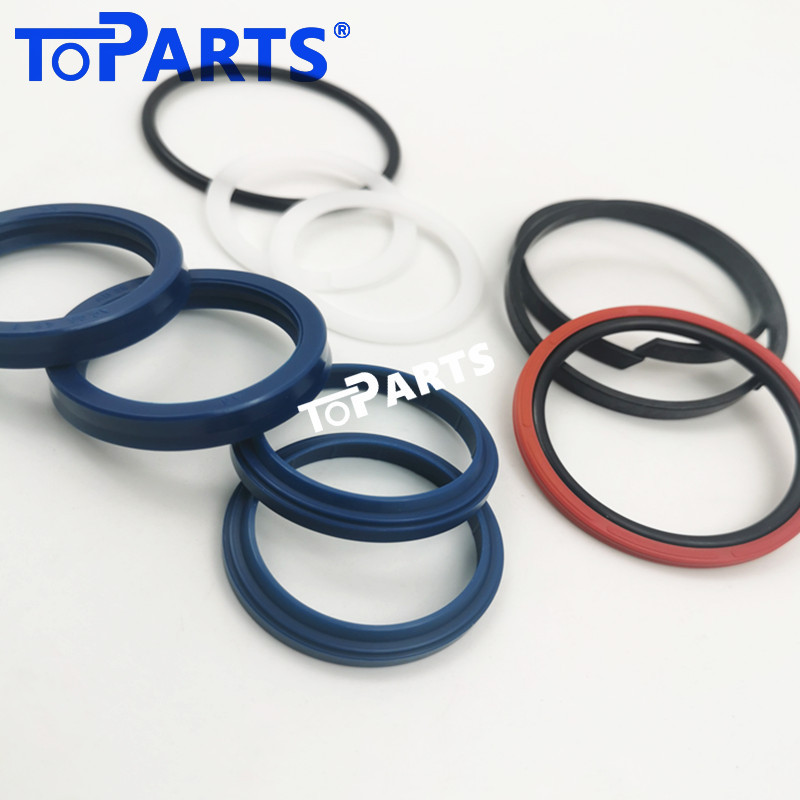

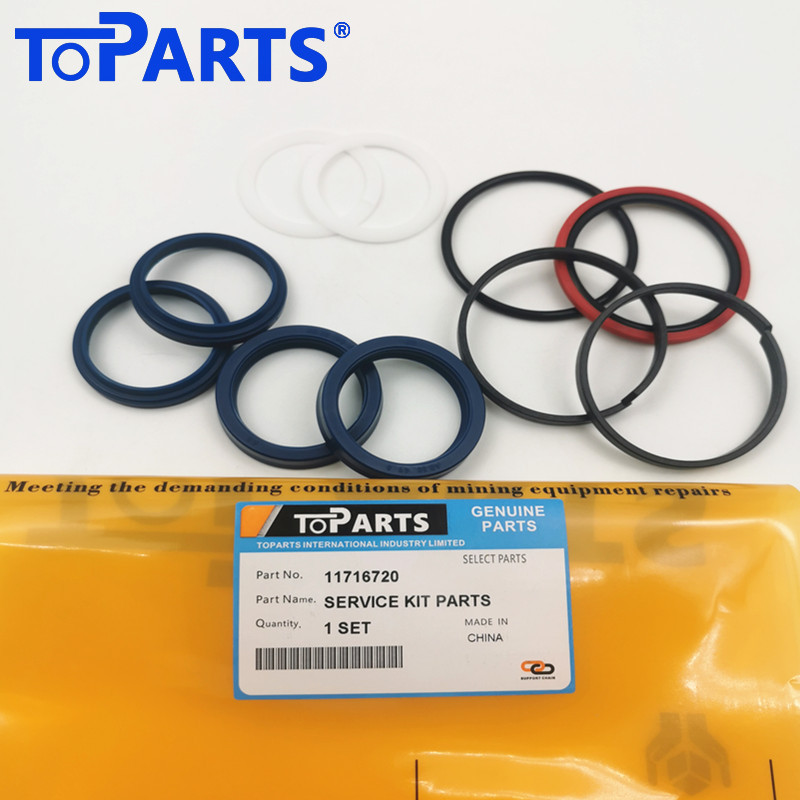

Heavy-Duty 11716720 Front Axle Steering Cylinder Seal Kit for Volvo BL60 Backhoe Loader
Regain sharp, zero-drift frontend alignment and eliminate steering column responsiveness lag with Toparts' premium 11716720 steering hydraulic cylinder seal kit. Specifically precision-engineered to fit the heavy-duty steering cylinders integrated into Volvo BL60 backhoe loader axle assemblies, this overhaul service kit is structurally optimized to handle continuous double-acting fluid directional shifts and intense steering loads.
The Toparts Engineering Difference: Built to Endure Frontend Axle Shock
Unlike boom or bucket cylinders that experience linear force, backhoe steering cylinders are mounted directly on the front axle frame. They are continuously subjected to severe tire vibrations on uneven ground, high lateral deflection stresses, and aggressive slurry/grit exposure. Standard aftermarket seals easily twist or experience premature lip tearing under these micro-movements, causing internal fluid bypass. At Toparts, we manufacture our Volvo-compatible kits with explicit component upgrades:
Anti-Twist P6000 Polyurethane Matrix: Our dynamic rod seals are molded from upgraded P6000 PU, offering 40% higher tensile memory and superior extrusion resistance under intense hydraulic pressure spikes, keeping the seal lip sharp during full-lock steering maneuvers.
Aggressive Environmental Mud Scraper: Features a rugged double-lip dust wiper system that vigorously shears off dried mud crusts, abrasive sand, and concrete dust from the extending rod before they can score the inner cylinder walls.
High Elastic Memory Static Sealing: All static O-rings and backup rings are formulated using high-grade NBR and specialized elastomers to resist compression set under continuous high oil temperatures up to 120°C.
Perfect OEM Dimensional Fit: Machined to strict tolerances for a flawless drop-in replacement of Volvo P/N 11716720, ensuring a zero-leakage fit inside the cylinder head groove.
Technical Specifications:
Brand Compatibility: Volvo Construction Equipment (Volvo CE)
Equipment Application: Backhoe Loaders (BL Series Industrial Utility)
Target Machine Match: Volvo BL60
Seal Kit Part Number (P/N): 11716720 / 11716720-0
Component Type: Front Axle Double-Acting Steering Cylinder Seals
Material Matrix: High-Performance P6000 PU, Premium NBR, Reinforced PTFE
Condition: 100% Brand New Industrial-Grade Aftermarket
