Parts list
|
No |
Part No. |
Part Name |
Q'ty |
No |
Part No. |
Part Name |
Q'ty |
|
1 |
153210101 |
Cylinder |
1 |
71 |
21350350 |
Gas valve body |
1 |
|
2 |
15321020 |
Piston |
1 |
72 |
21350351 |
Gas valve |
1 |
|
3 |
15321030 |
Cylinder sleeve |
1 |
73 |
21321352 |
Spring |
1 |
|
11A |
E1022175 |
O-ring |
2 |
74 |
21320353 |
Gas cap |
1 |
|
11B |
E2122175 |
Back up ring |
1 |
75 |
21320354 |
Cover cap |
1 |
|
13 |
10230132 |
U-packing |
2 |
76 |
E1012016 |
O-ring |
1 |
|
14A |
10245132 |
Ring packing |
1 |
77 |
E1161008 |
O-ring |
1 |
|
14B |
E1161357 |
O-ring |
1 |
78 |
21320355 |
Cover cap washer |
1 |
|
15A |
10230136 |
U-packing |
2 |
79 |
21350356 |
Gas cap packing |
1 |
|
15B |
9E3B2136 |
U-packing |
1 |
81 |
153240101 |
Front cap |
1 |
|
17 |
E1022180 |
O-ring |
1 |
82 |
15324110 |
Shank bushing |
1 |
|
18 |
E1012020 |
O-ring |
1 |
83 |
15324210 |
Front cap bushing |
1 |
|
19A |
K10506 |
Flange plug(GPF1/4) |
6 |
84 |
21481195 |
Shaft(20x158) |
4 |
|
19B |
E1012011 |
O-ring |
6 |
85 |
15204122 |
Shaft retainer(20) |
4 |
|
19C |
K10509 |
Flange plug(GPF3/8) |
2 |
86A |
K10519 |
Flange plug(GPF3/4) |
4 |
|
19D |
E1012014 |
O-ring |
2 |
86B |
E10120224 |
O-ring |
4 |
|
19E |
K10525 |
Flange plug(GPF1) |
2 |
88 |
21310450 |
Grease nipple |
2 |
|
19F |
E1012029 |
O-ring |
2 |
89A |
K10103A |
Plug(GM1/8) |
2 |
|
21 |
15323010 |
Valve box |
1 |
89B |
K10109A |
Plug(GM3/8) |
1 |
|
23 |
15323030 |
Valve |
1 |
91 |
15324310 |
Chisel set pin |
2 |
|
24 |
15323040 |
Valve box sleeve |
1 |
92 |
101120190 |
Shaft(20x190) |
1 |
|
25 |
15323050 |
Valve cap |
1 |
93 |
15204122 |
Shaft retainer(20) |
1 |
|
27 |
A030A5349 |
Cap screw(M24×55) |
4 |
94A |
15204123 |
Plug |
1 |
|
28 |
C810A024 |
Spring washer(M24C) |
4 |
94B |
E10120224 |
O-ring |
1 |
|
29A |
21401157 |
Flow controlplug |
1 |
101 |
15322510 |
Side rod |
4 |
|
29B |
21350157 |
Flow controlplug |
1 |
102 |
21422031 |
Side rod front nut |
4 |
|
33 |
E1022070 |
O-ring |
1 |
103 |
15322530 |
Back nut |
4 |
|
35A |
E1012022A |
O-ring |
1 |
104 |
15322531 |
Back nut washer |
4 |
|
35B |
E1012039 |
O-ring |
5 |
|
|
|
|
|
37 |
A030A5359 |
Cap screw(M24x60) |
8 |
200 |
TP200-1200P |
Point chisel |
1 |
|
38 |
C810A024 |
Spring washer(M24C) |
8 |
200 |
TP200-1200E |
Flat-end chisel |
1 |
|
39A |
K10506 |
Flange plug(GPF1/4) |
3 |
200 |
TP200-1200FX |
Cross cut chisel |
1 |
|
39B |
E1012011 |
O-ring |
3 |
200 |
TP200-1200FY |
In line chisel |
1 |
|
39C |
K10512 |
Flange plug(GPF1/2) |
3 |
200 |
TP200-120DCP |
Core point chisel |
1 |
|
39D |
E1012018 |
O-ring |
3 |
|
|
|
|
|
39E |
K10525 |
Flange plug(GPF1) |
1 |
|
|
|
|
|
39F |
E1012029 |
O-ring |
1 |
|
153210SK2 |
Seal kit |
1 |
|
|
|
|
|
|
15323000 |
Valve box assy |
1 |
|
61 |
15322010 |
Back cap |
1 |
|
153230SK |
Valve box O-ring kit |
1 |
|
62A |
E1022175 |
O-ring |
1 |
|
21350350X |
Gas valve body assy |
1 |
|
62B |
E2122175 |
Back up ring |
1 |
|
153240001 |
Front cap assy |
1 |
|
69A |
K10519 |
Flange plug(GPF3/4) |
1 |
|
15324300 |
Chisel set pin assy |
1 |
|
69B |
E10120224 |
O-ring |
1 |
|
15322500 |
Side rod assy |
4 |

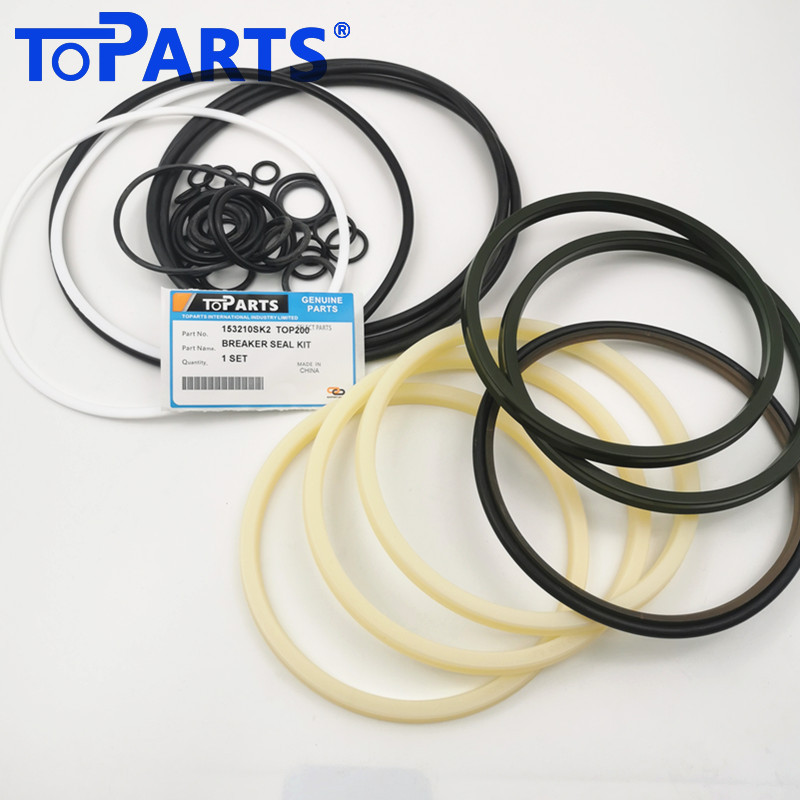

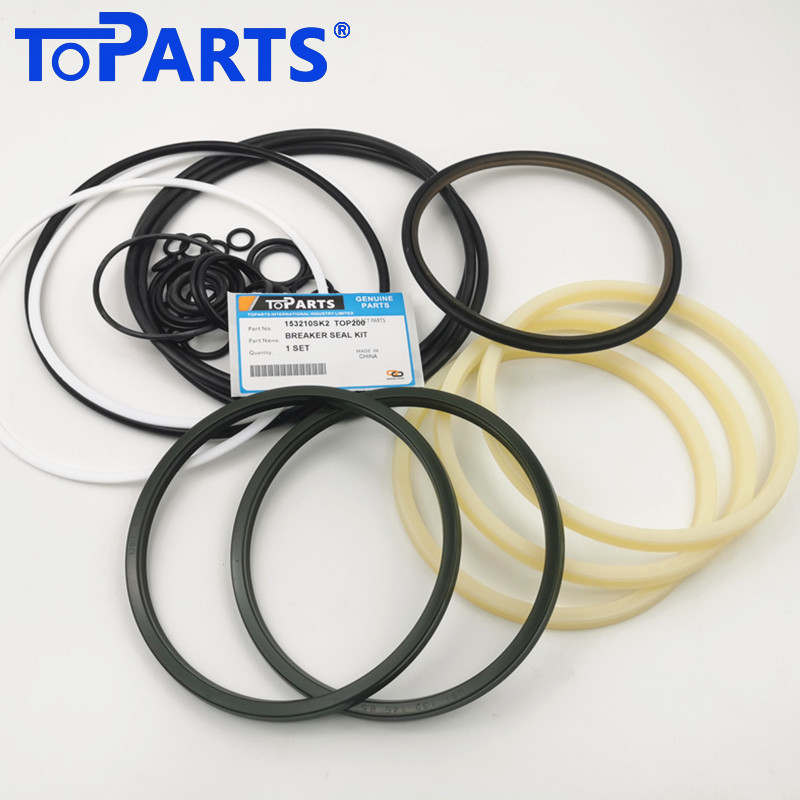

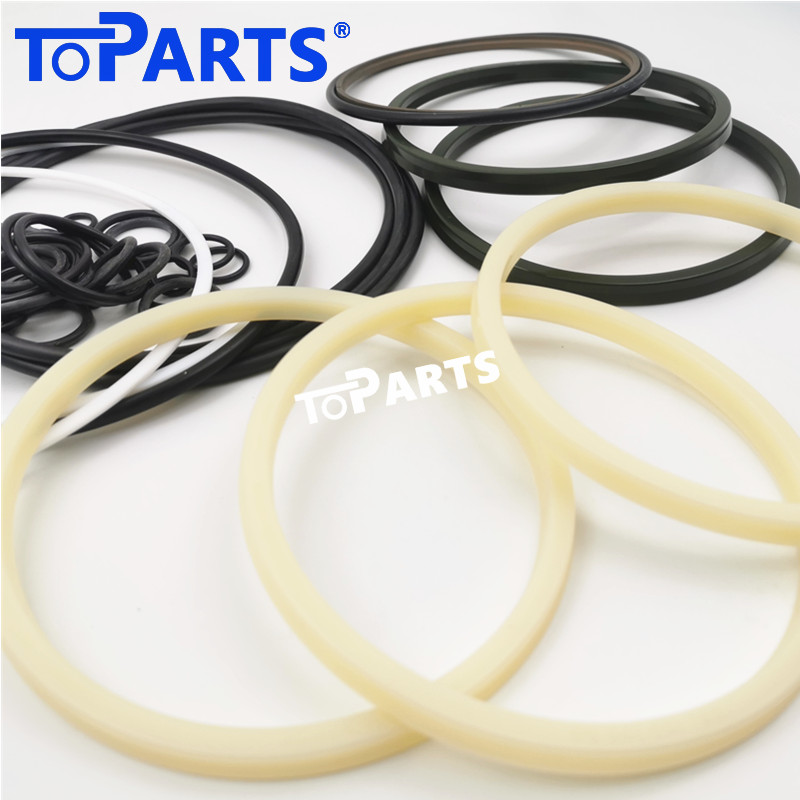

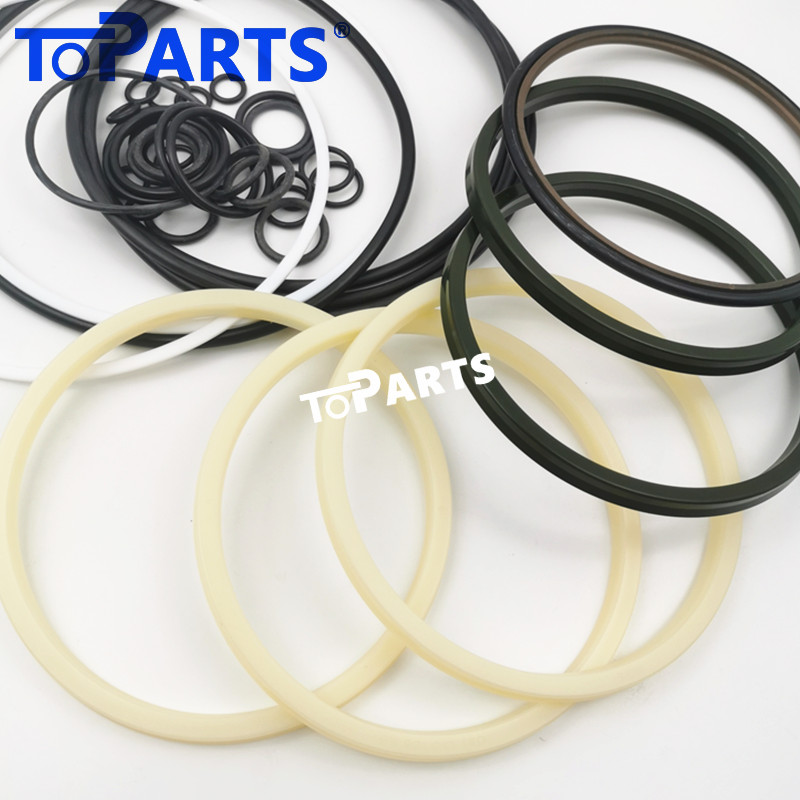

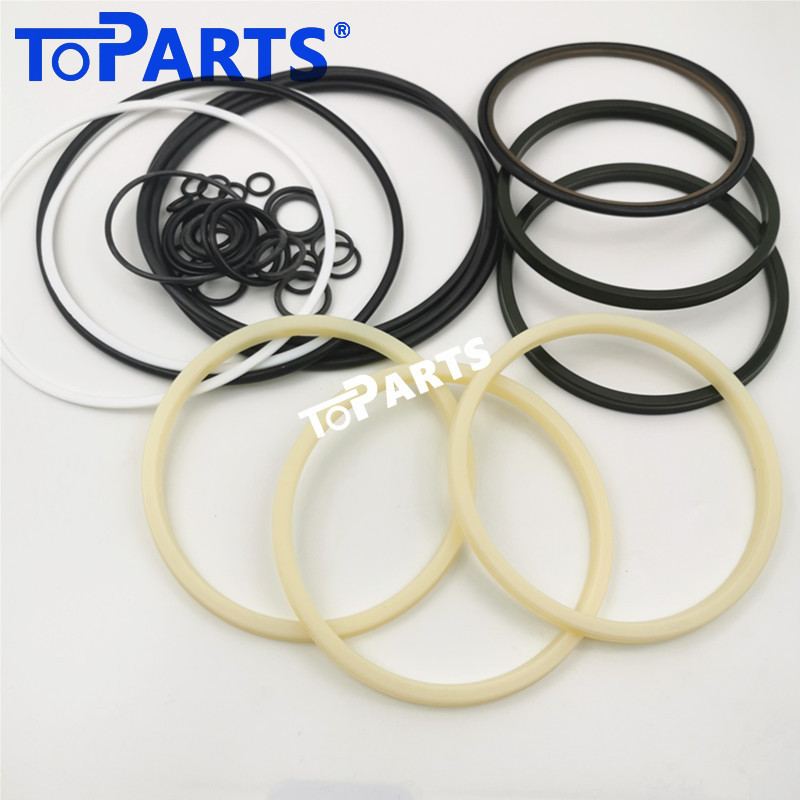

Toparts 153210SK2 Hydraulic Breaker Seal Kit for OKADA TOP200
Restore the crushing power and hydraulic efficiency of your heavy-duty attachment with the Toparts 153210SK2 Seal Kit. Specifically engineered for the OKADA TOP200 Hydraulic Hammer, this premium repair service kit is the professional choice for eliminating leaks and maintaining the massive impact energy required for primary rock breaking and heavy demolition.
High-Performance Sealing for OKADA TOP Series
The OKADA TOP200 is a high-performance breaker designed for large carriers, known for its superior durability and "long-stroke" percussion system. To maintain its rated striking force, the internal seals must withstand extreme hydraulic pressure and high operating temperatures. Toparts has developed the 153210SK2 kit using advanced material science to prevent internal oil bypass and ensure your TOP200 remains a powerhouse on the job site.
Key Features and Benefits:
Direct OEM Compatibility: Precisely matched to OKADA part number 153210SK2, ensuring an exact fit for the TOP200 model without any field modifications.
Premium Material Composition: Manufactured from high-tensile Polyurethane (PU) and specialized Hydrogenated Nitrile (HNBR). These materials offer exceptional resistance to high-pressure spikes, friction, and thermal degradation.
Zero-Leak Integrity: Engineered to provide a perfect seal across a wide range of pressures, preventing external oil leaks and maintaining a clean, efficient hydraulic system.
Thermal Stability: Formulated to perform consistently in extreme environments, preventing seal hardening in cold climates or softening during continuous, high-intensity shifts.
Superior Contamination Exclusion: Includes heavy-duty wiper seals designed to scrape away abrasive rock dust, concrete grit, and moisture, protecting the expensive internal piston and cylinder from scoring.
Complete Overhaul Set: This all-in-one kit includes all vital rod seals, buffer seals, back-up rings, and O-rings required for a professional-grade internal service.
Product Specifications:
Feature:Details
Part Number:153210SK2
Compatible Model:OKADA TOP200 Hydraulic Hammer
Component Type:Full Hydraulic Sealing Service / Repair Kit
Material Grade:Industrial Strength PU, HNBR, and NBR
Application:Heavy Demolition, Mining, and Primary Rock Breaking
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a leading specialist in high-performance sealing solutions for the global hydraulic attachment industry. We understand that in heavy-duty demolition, reliability is your bottom line. Our 153210SK2 seal kit provides the perfect balance of OEM-standard quality and exceptional aftermarket value, ensuring your OKADA TOP200 remains a powerful, dependable, and profitable asset.
Would you like me to check the availability of the matching Accumulator Diaphragm or the Front Bushing for your OKADA TOP200 to complete your maintenance project?
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
