English

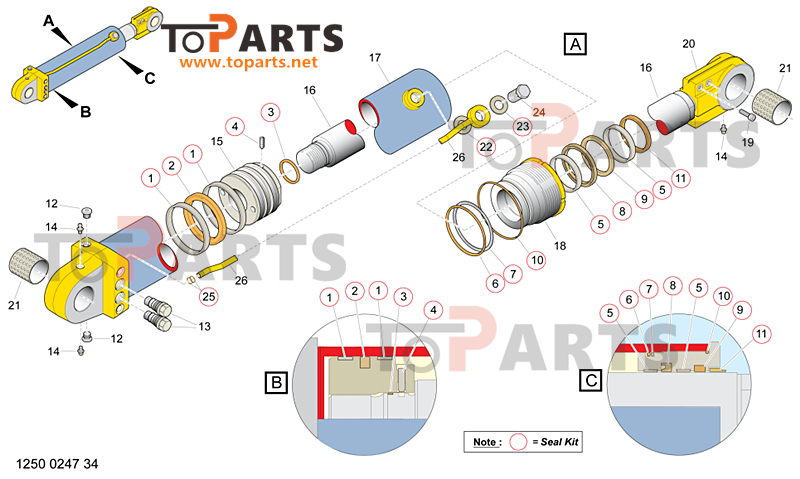

Parts list
|
HYDR. CYLINDER / HYDRAULCYLINDER 3128 3219 00 |
|||
|
no |
Part no |
Qty |
Description |
|
|
3128321936 |
1 |
SEAL KIT |
|
|
9120099401 |
1 |
SEAL KIT |
|
1 |
|
2 |
GUIDE RING |
|
2 |
|
1 |
PISTON SEAL |
|
3 |
– |
1 |
O-RING |
|
4 |
|
1 |
SCREW |
|
5 |
|
2 |
GUIDE RING |
|
6 |
– |
1 |
O-RING |
|
7 |
|
1 |
BACK-UP RING |
|
8 |
– |
1 |
PISTON ROD SEAL |
|
9 |
– |
1 |
PISTON ROD SEAL |
|
10 |
|
1 |
O-RING |
|
11 |
– |
1 |
WIPER |
|
12 |
3128321997 |
2 |
PLUG |
|
13 |
3128321999 |
2 |
VALVE |
|
14 |
0544216200 |
3 |
GREASE NIPPLE |
|
15 |
3128322028 |
2 |
PISTON |
|
16 |
3128321985 |
1 |
PISTON ROD |
|
17 |
– |
1 |
CYL.BARREL |
|
18 |
3128322213 |
1 |
COVER |
|
19 |
3128322219 |
2 |
SCREW |
|
20 |
3128322245 |
1 |
PISTON ROD EYE |
|
21 |
3128321986 |
2 |
BUSHING |
|
22 |
|
1 |
SEAL RING |
|
23 |
– |
1 |
SEAL RING |
|
24 |
9127230000 |
1 |
SCREW |
|
25 |
|
2 |
O-RING |
|
26 |
9126461002 |
1 |
PIPE |

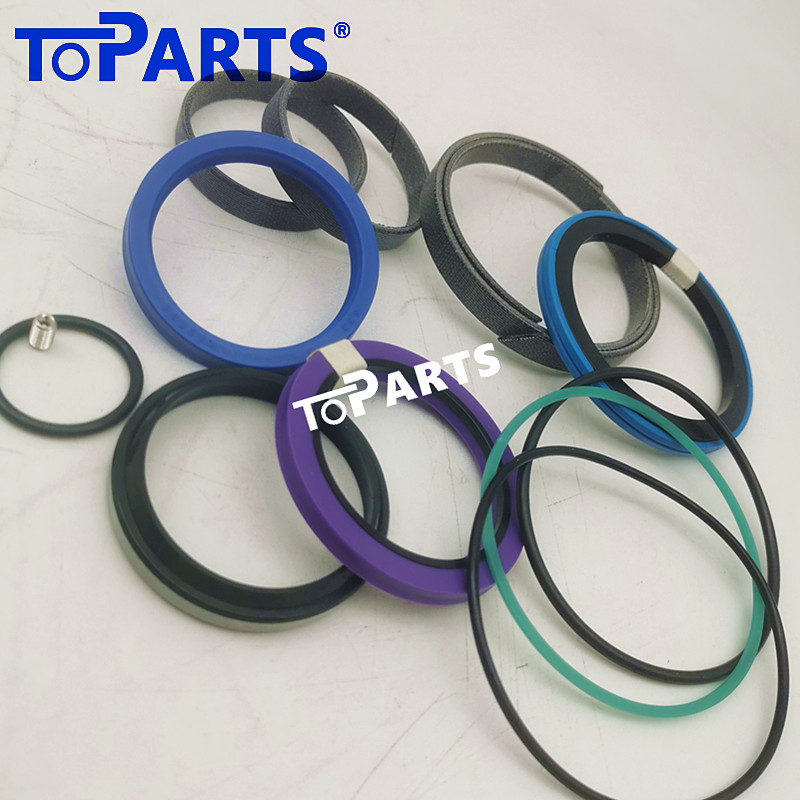

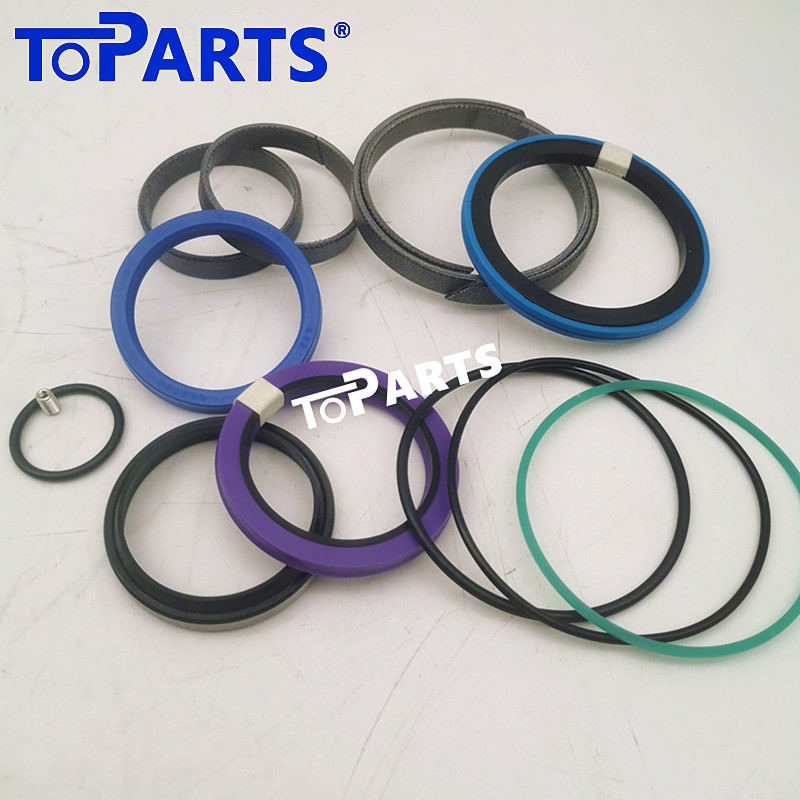

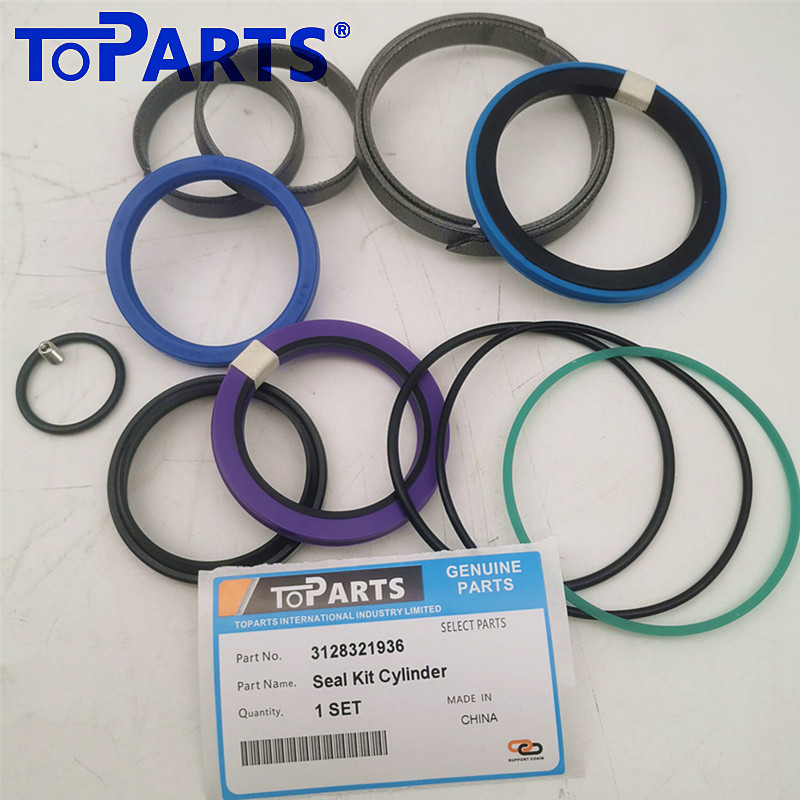

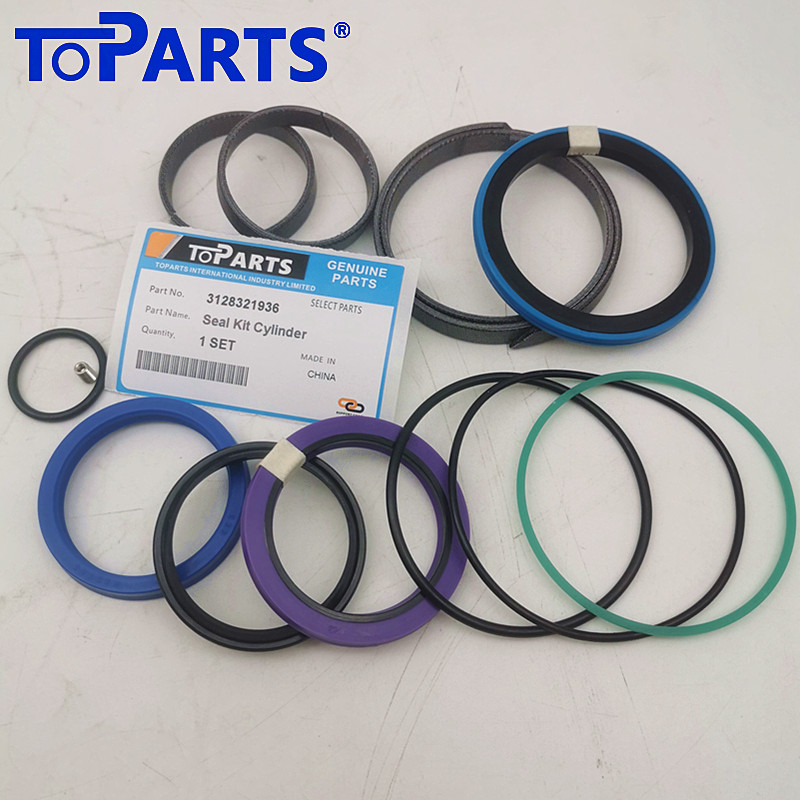

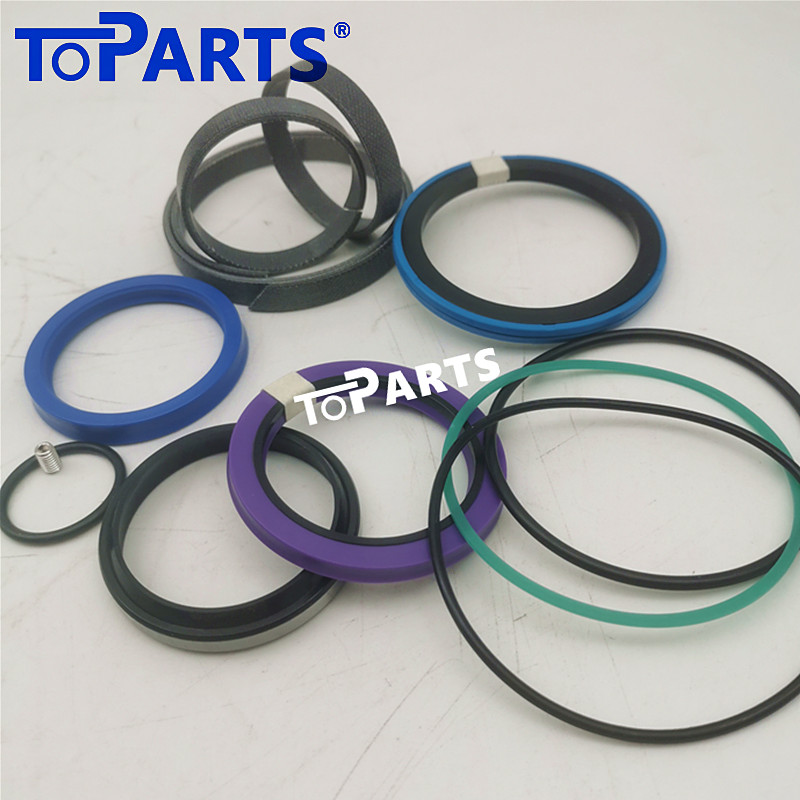

Toparts 3128321936 Hydraulic Rock Drill Seal Kit for Atlas Copco Boomer Face Drill
Achieve robust drilling performance and ensure the longevity of your equipment with the Toparts 3128321936 Hydraulic Rock Drill Seal Kit. This crucial service and repair kit is specifically engineered for the drifter unit on your Atlas Copco Boomer Face Drill Rig, guaranteeing reliable operation and optimal power transfer.
Engineered for Atlas Copco Drifters
The drifter on an Atlas Copco Boomer Rig is constantly subjected to intense hydraulic pressure and mechanical shock. The Toparts 3128321936 seal kit is a high-precision, direct aftermarket replacement for the original seals. It is meticulously crafted to meet or exceed the rigorous standards of the OEM, ensuring a perfect fit and dependable sealing function under extreme conditions.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the Atlas Copco OEM part number 3128321936, ensuring full compatibility with the drifter unit on your Boomer Face Drill.
Superior Material Quality: Manufactured using specialized, high-grade materials (including high-performance polyurethanes, FKM, and PTFE), our seals are built to withstand the operational extremes of rock drilling, including high pressure surges, heat, and severe vibration.
Restores Percussion Power: Worn seals cause internal fluid bypass, leading to a significant drop in percussion pressure and drilling speed. Replacing them with the Toparts 3128321936 kit restores the drifter's maximum impact energy and reliable penetration rates.
Extends Drifter Life: By maintaining proper internal sealing, the kit effectively prevents contamination ingress and significantly reduces friction and wear on the intricate and expensive internal components of your drill rig's drifter.
Comprehensive Repair Solution: The kit contains all the necessary seals, O-rings, and specialized components required for a complete and effective hydraulic overhaul of the drifter unit.
Product Details:
Part Number (Seal Kit): 3128321936
Compatible Machine: Atlas Copco Boomer Face Drill Rigs (Drifter Unit)
Application: Hydraulic Rock Drill Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't compromise your drilling schedule or equipment health. Invest in the trusted quality and reliability of the Toparts 3128321936 Hydraulic Rock Drill Seal Kit for your Atlas Copco Boomer Face Drill.
