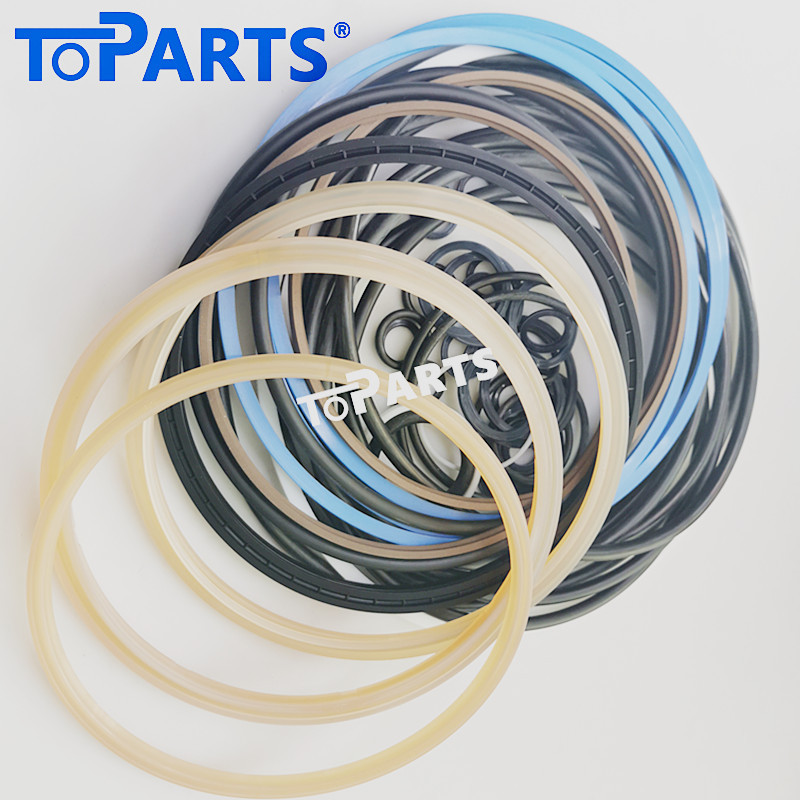

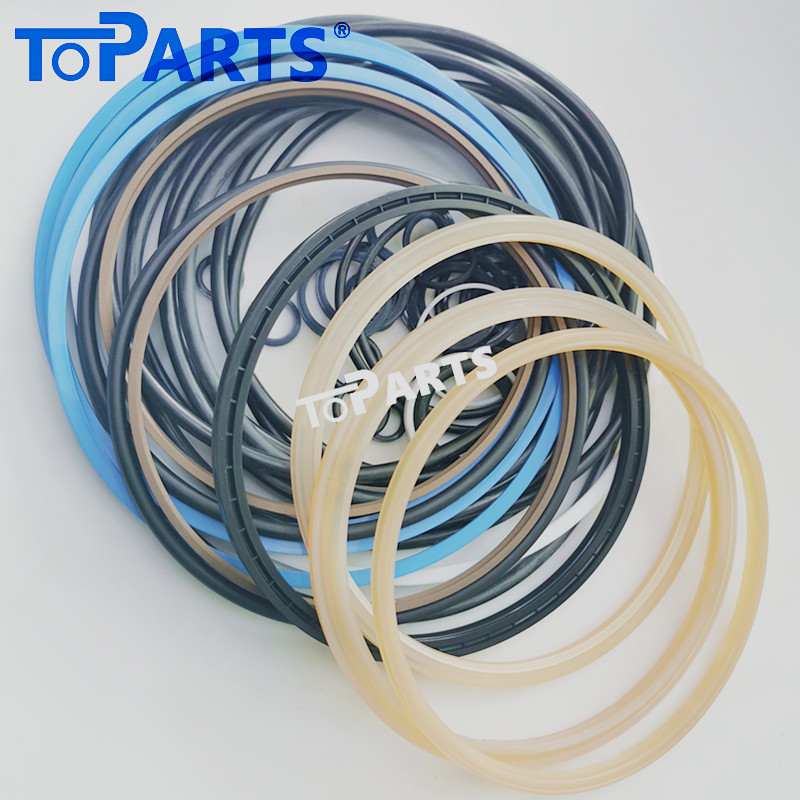

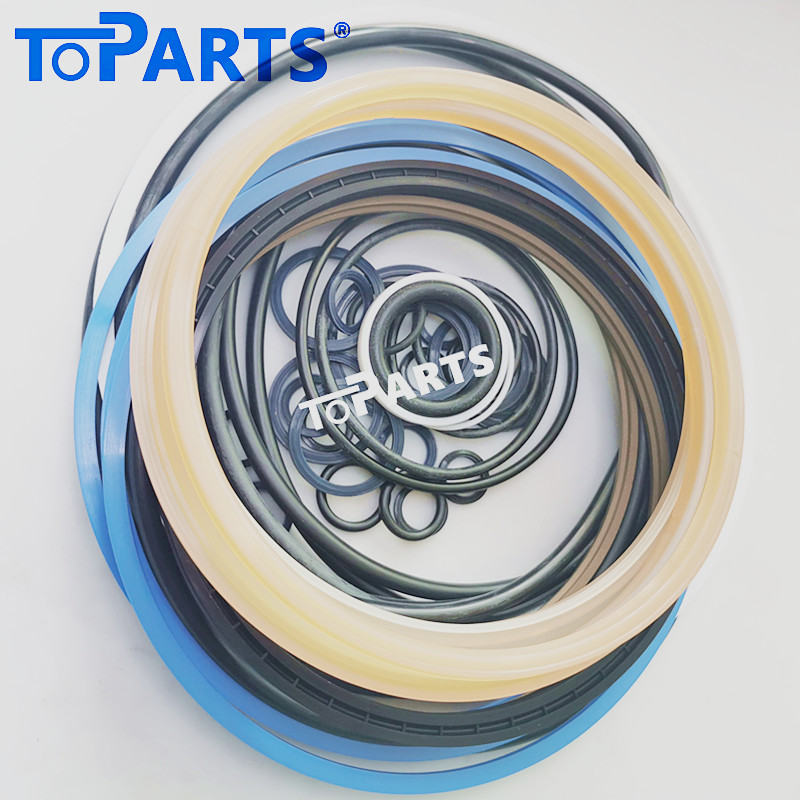

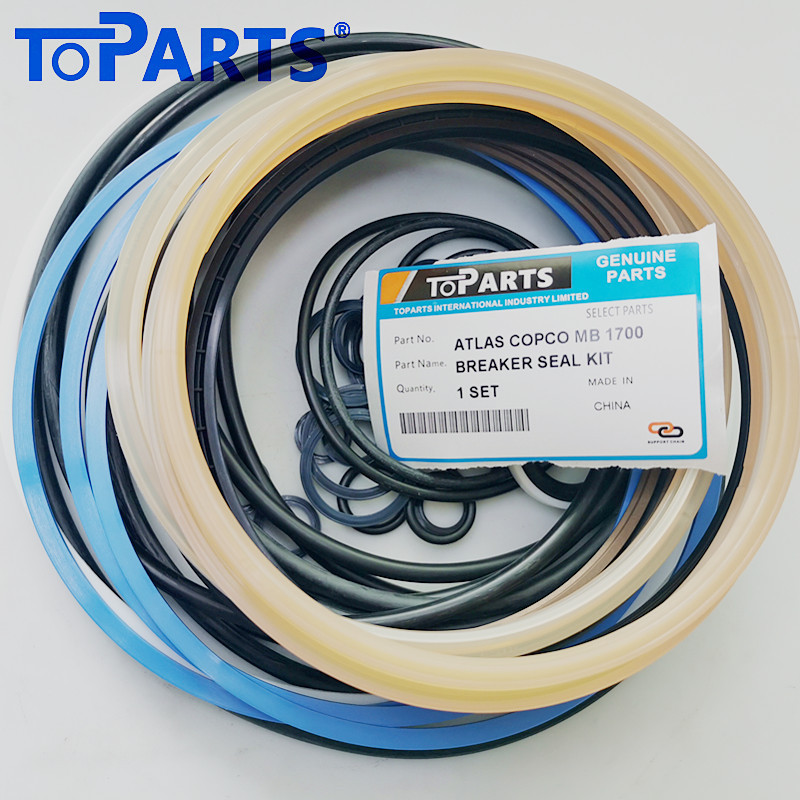

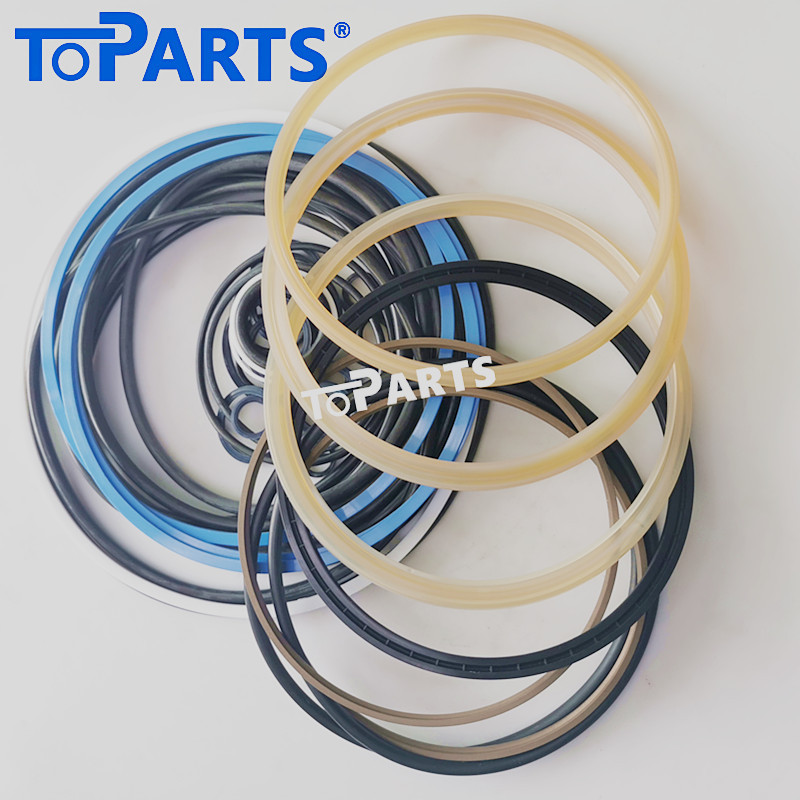

Model:Atlas Copco MB1700 Hydraulic breaker
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:140MM
Part Number:3363034311
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:50
MOQ:1set
Parts list

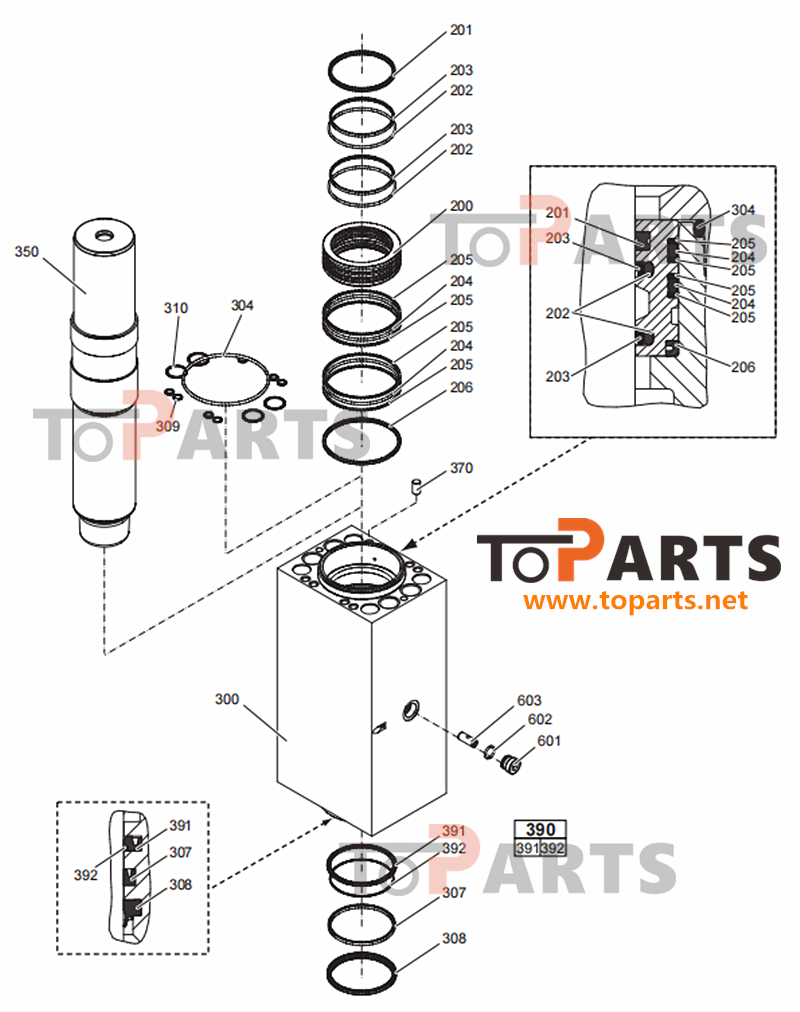

Exploded view
Parts list
|
No. |
Description |
Quantity |
Part number |
|
|
Seal kit |
1 |
3363 0343 11 |
|
103 |
O-ring |
1 |
3360 3143 75 |
|
108 |
O-ring |
1 |
3360 3143 70 |
|
115 |
O-ring |
1 |
3360 4781 71 |
|
132 |
O-ring |
2 |
3360 3143 7 |
|
164 |
O-ring |
1 |
3361 0319 12 |
|
165 |
Back-up ring |
1 |
3361 8505 29 |
|
166 |
O-ring |
1 |
3361 0319 90 |
|
182 |
Plug |
1 |
3360 4784 26 |
|
183 |
O-ring |
1 |
3360 1751 25 |
|
201 |
Seal |
1 |
3363 0318 72 |
|
202 |
O-ring |
2 |
3360 4797 21 |
|
203 |
Seal |
2 |
3363 0319 73 |
|
204 |
O-ring |
2 |
3360 4781 69 |
|
205 |
Back-up ring |
4 |
3363 0843 61 |
|
304 |
O-ring |
1 |
3362 3281 26 |
|
307 |
Seal |
1 |
3362 2675 57 |
|
308 |
Wiper |
1 |
3363 0836 68 |
|
309 |
Seal |
7 |
3362 2675 84 |
|
310 |
Seal |
4 |
3362 2675 89 |
|
390 |
Seal kit |
1 |
3362 2638 22 |
|
391 |
Seal |
1 |
- |
|
392 |
Back-up ring |
1 |
- |
Product Overview
The Toparts MB1700 Hydraulic Breaker Seal Kit is a high-quality replacement seal kit designed for Atlas Copco MB1700 hydraulic breakers. This comprehensive kit includes all necessary seals, O-rings, and wear rings to ensure optimal performance and extended service life of your hydraulic breaker.
Key Features:
✔ Premium Material: Made from durable NBR (Nitrile Rubber) and polyurethane for excellent resistance to wear, high pressure, and hydraulic oil.
✔ Complete Seal Set: Includes all critical seals for piston, cylinder, accumulator, and other internal components.
✔ Precision Engineering: Manufactured to meet or exceed OEM specifications for a perfect fit and reliable sealing performance.
✔ Extended Service Life: Reduces downtime by preventing hydraulic fluid leaks and maintaining breaker efficiency.
✔ Easy Installation: Designed for straightforward replacement, minimizing maintenance time.
Applications:
Ideal for construction, demolition, mining, and quarrying operations where the Atlas Copco MB1700 hydraulic breaker is used.
Why Choose Toparts?
Cost-Effective: High-quality alternative to OEM parts at a competitive price.
Reliable Performance: Rigorously tested to ensure durability under tough working conditions.
Global Availability: Trusted by contractors and equipment owners worldwide.
Package Includes:
Piston seals
Cylinder seals
Accumulator seals
O-rings & backup rings
Other necessary sealing components
Maintenance Tips:
Replace seals at recommended intervals or when leaks are detected.
Use compatible hydraulic fluid to prolong seal life.
Follow proper installation procedures to avoid damage.
For more details or technical support, feel free to contact us!
