Parts list
|
ITEM |
PART NO. |
PART NAME |
QTY |
|
K1 |
AB303-0131 |
Seal Kit [K2+K3+K4+K5] |
1 |
|
K2 |
AB303-0048 |
Piston Lower Part Seal Kit |
1 |
|
|
AA053-0039 |
Buffer Ring |
1 |
|
|
AA053-0040 |
U-Packing |
1 |
|
|
AA053-0040 |
Dust Seal |
1 |
|
K3 |
AB303-0028 |
Piston Upper Part Seal Kit |
1 |
|
|
A057-0005 |
Gas Seal |
1 |
|
|
A056-0012 |
Step Seal |
2 |
|
|
S8011901 |
O-ring |
2 |
|
|
AA056-0040 |
Buffer Seal |
1 |
|
K4 |
AA062-0101 |
Swivel Joint Seal Kit |
2 |
|
|
A056-0061 |
Rotary Seal |
2 |
|
|
AA052-0005 |
Back-up Ring |
4 |
|
|
S8000241 |
O-ring |
1 |
|
|
A051-2252 |
O-ring |
1 |
|
K5 |
AB303-0029 |
Normal Seal Kit |
1 |
|
|
S8000051 |
O-ring |
1 |
|
|
S8000111 |
O-ring |
10 |
|
|
S8000141 |
O-ring |
6 |
|
|
S8000151 |
O-ring |
1 |
|
|
S8000181 |
O-ring |
3 |
|
|
S8000201 |
O-ring |
1 |
|
|
S8000241 |
O-ring |
4 |
|
|
S8000291 |
O-ring |
1 |
|
|
S8000551 |
O-ring |
1 |
|
|
S8000701 |
O-ring |
1 |
|
|
S8000751 |
O-ring |
1 |
|
|
S8010251 |
O-ring |
2 |
|
|
S8010301 |
O-ring |
1 |
|
|
S8011901 |
O-ring |
1 |
|
|
S8060181 |
Back-up Ring |
1 |
|
|
S8090251 |
Back-up Ring |
1 |
|
|
A052-0007 |
Back-up Ring |
1 |
|
|
A053-0085D032 |
Static Seal |
3 |
|
|
A083-1066 |
O-ring |
1 |
|
|
A052-0019 |
Protect Ring |
1 |
Product Description

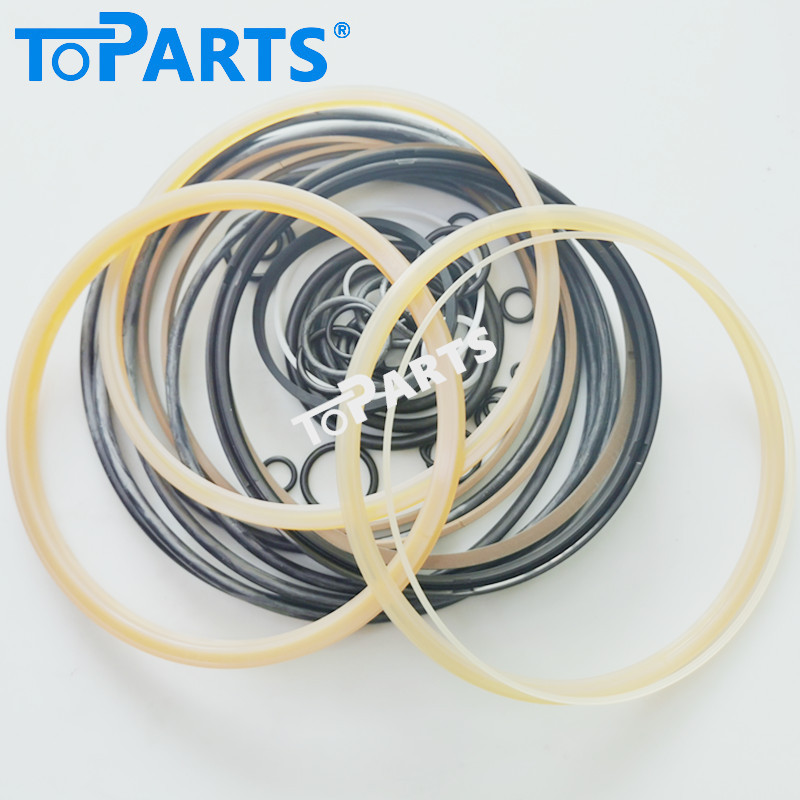

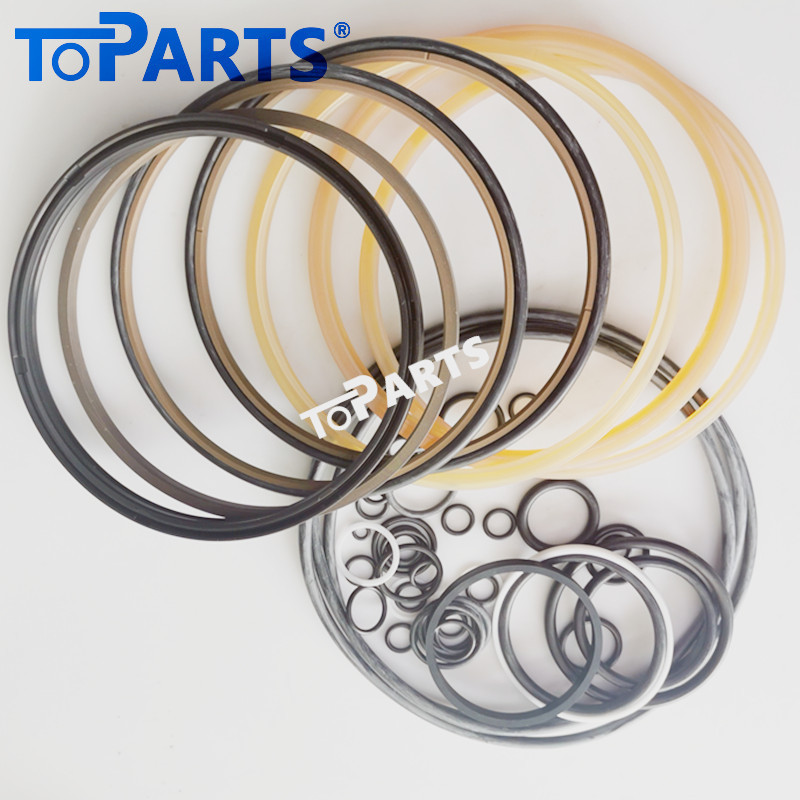

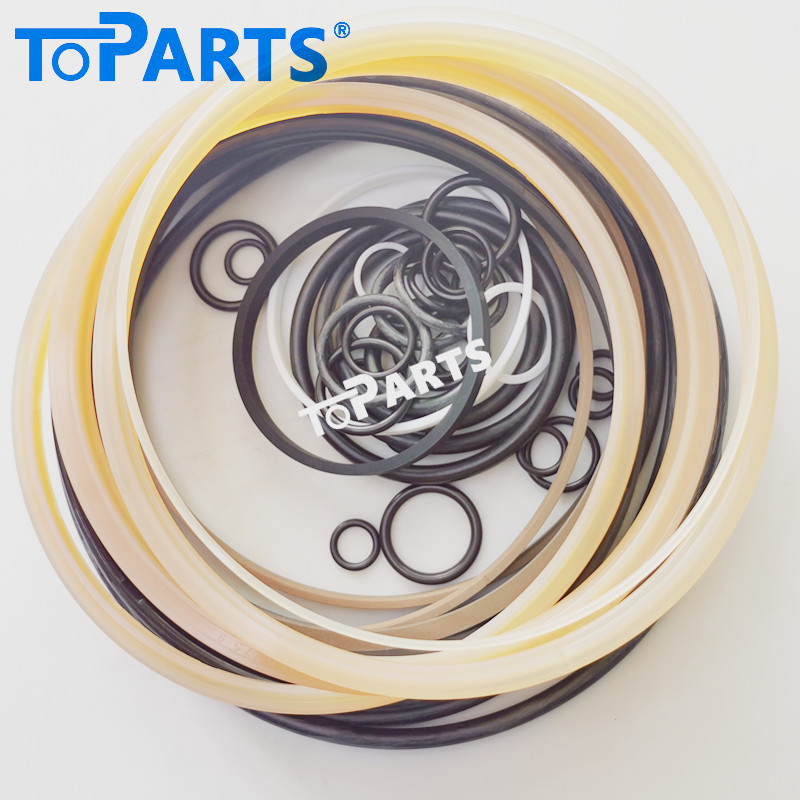

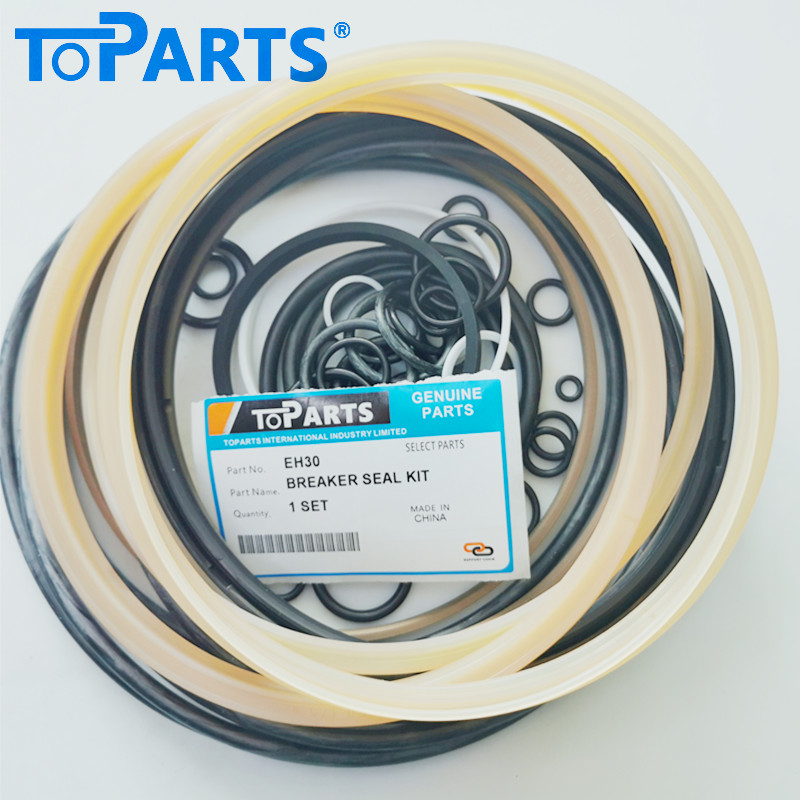

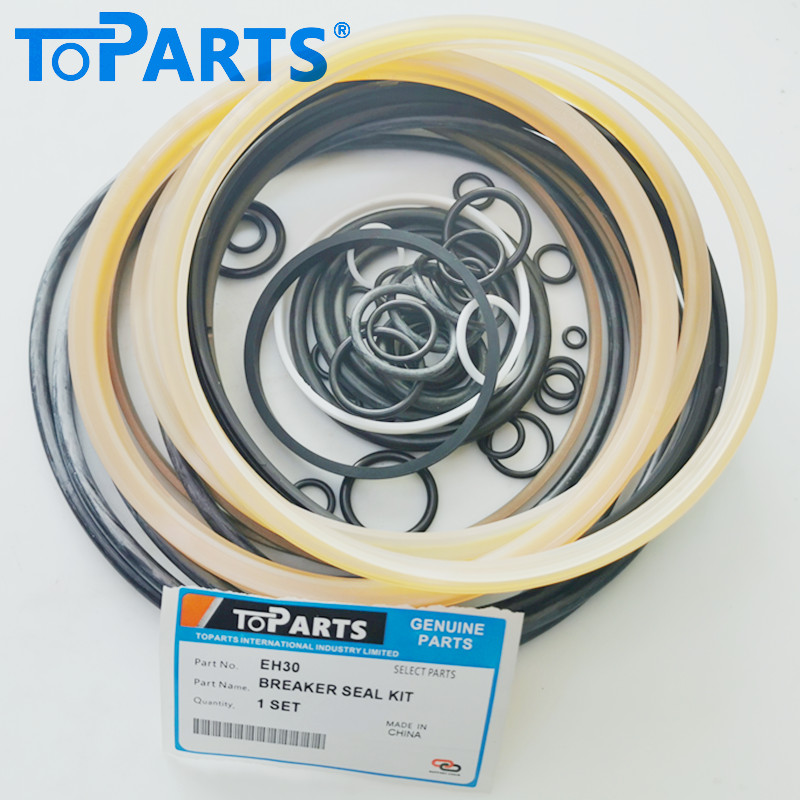

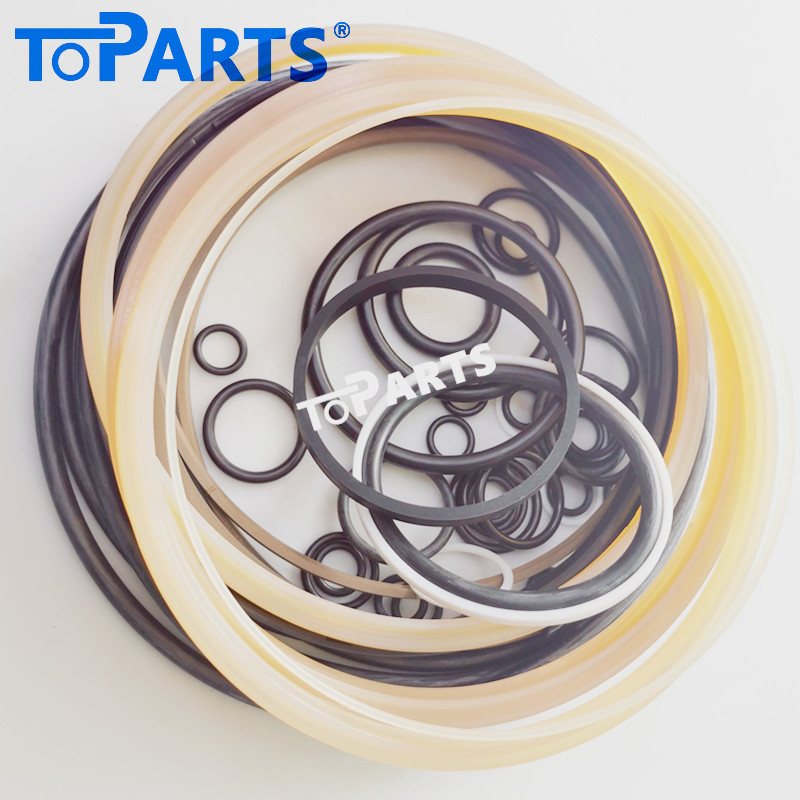

Premium AB303-0131 Hydraulic Breaker Service Repair Kit for Everdigm EHB30
Maintain the peak performance of your Everdigm EHB30 hydraulic hammer with the AB303-0131 seal repair kit. Everdigm (formerly Hanwoo) breakers are renowned for their power; however, to maintain that impact energy, high-quality sealing is essential. Our kits are precision-engineered to withstand the extreme vibrations and heat generated during heavy-duty demolition.
At Toparts, we provide industrial-grade sealing solutions that match the technical requirements of the EHB series, ensuring a leak-free system and consistent hitting power.
Product Highlights:
Exact Fitment: Designed specifically for the Everdigm EHB30 hydraulic rock hammer (Part Number: AB303-0131).
Industrial-Grade Materials: Manufactured using high-tensile Polyurethane (PU) and NBR for superior resistance to abrasion and hydraulic oil degradation.
Peak Power Restoration: Prevents nitrogen gas leakage and internal fluid bypass, ensuring your breaker hits at full factory-spec energy.
Vibration & Heat Resistance: Formulated to remain flexible and effective under the high-frequency strokes and elevated temperatures of continuous operation.
Complete Overhaul Kit: Includes all essential components—rod seals, buffer seals, dust wipers, and O-rings—for a professional repair.
Technical Specifications:
Brand Compatibility: Everdigm (Hanwoo)
Model: EHB30
Part Number: AB303-0131
Component Type: Hydraulic Breaker / Rock Hammer
Materials: Premium High-Grade PU, NBR, PTFE
Condition: 100% Brand New Industrial-Grade Aftermarket
