Parts list
|
EHB50-Seal Kit |
|||
|
ITEM |
PART NO. |
PART NAME |
QTY |
|
K1 |
AB502-0045 |
Seal Kit |
1 |
|
K2 |
AB502-0008 |
Piston Lower Part Seal Kit |
1 |
|
|
AA053-0037 |
-Buffer Ring |
-1 |
|
|
AA053-0038 |
-U-Packing |
-2 |
|
|
AA054-0018 |
-Dust Seal |
-1 |
|
K3 |
AB502-0004 |
Piston Upper Part Seal Kit |
1 |
|
|
A056-0045 |
-Step Seal |
-2 |
|
|
A057-0019 |
-Gas Seal |
-1 |
|
|
S8012201 |
-O-ring |
-2 |
|
|
A056-0043D003 |
-Buffer Seal |
-1 |
|
K4 |
AA062-0061 |
Swivel Joint Seal Kit |
2 |
|
|
AA055-0003 |
-Quad Ring |
-2 |
|
|
AA052-0005 |
-Back-up Ring |
-2 |
|
|
S8000241 |
-O-ring |
-1 |
|
|
A051-2252 |
-O-ring |
-1 |
|
K5 |
AB502-0005 |
Normal Seal Kit |
1 |
|
|
S8000051 |
-O-ring |
-1 |
|
|
S8000111 |
-O-ring |
-6 |
|
|
S8000141 |
-O-ring |
-10 |
|
|
S8000151 |
-O-ring |
-1 |
|
|
S8000181 |
-O-ring |
-2 |
|
|
S8000201 |
-O-ring |
-1 |
|
|
S8000211 |
-O-ring |
-1 |
|
|
S8000241 |
-O-ring |
-3 |
|
|
S8000341 |
-O-ring |
-1 |
|
|
S8000381 |
-O-ring |
-3 |
|
|
S8000751 |
-O-ring |
-1 |
|
|
S8000951 |
-O-ring |
-1 |
|
|
S8001001 |
-O-ring |
-1 |
|
|
S8010251 |
-O-ring |
-2 |
|
|
S8012201 |
-O-ring |
-1 |
|
|
S8070210 |
-Back-up Ring |
-1 |
|
|
S8090251 |
-Back-up Ring |
-1 |
|
|
A052-0016 |
-Back-up Ring |
-1 |
|
|
A053-0085D040 |
-Static Seal |
-3 |
|
|
A083-1066 |
-O-ring |
-1 |
|
|
A052-0025 |
-Protect Ring |
-1 |
Product Description

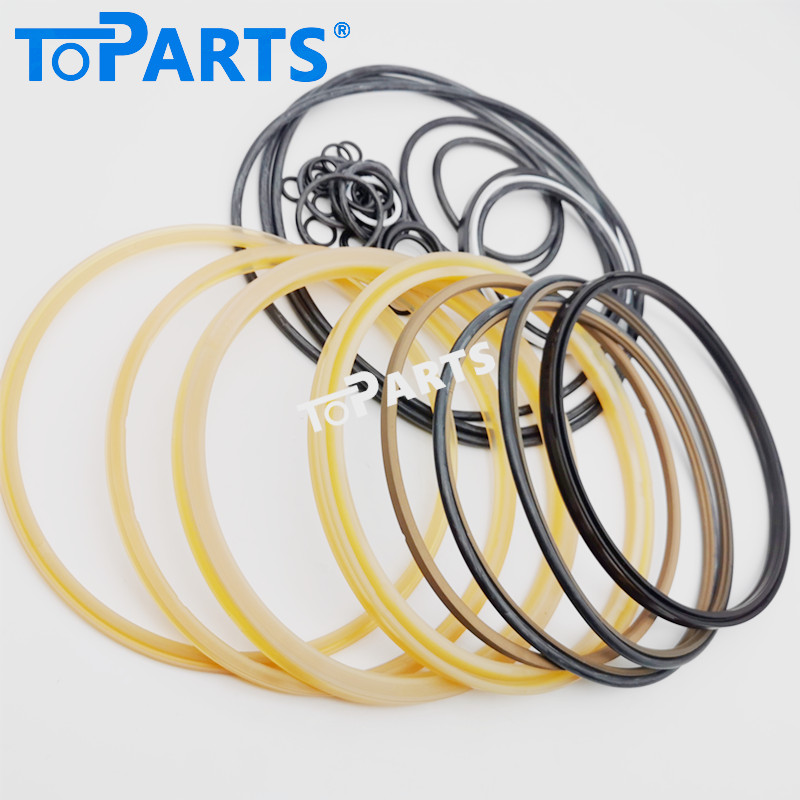

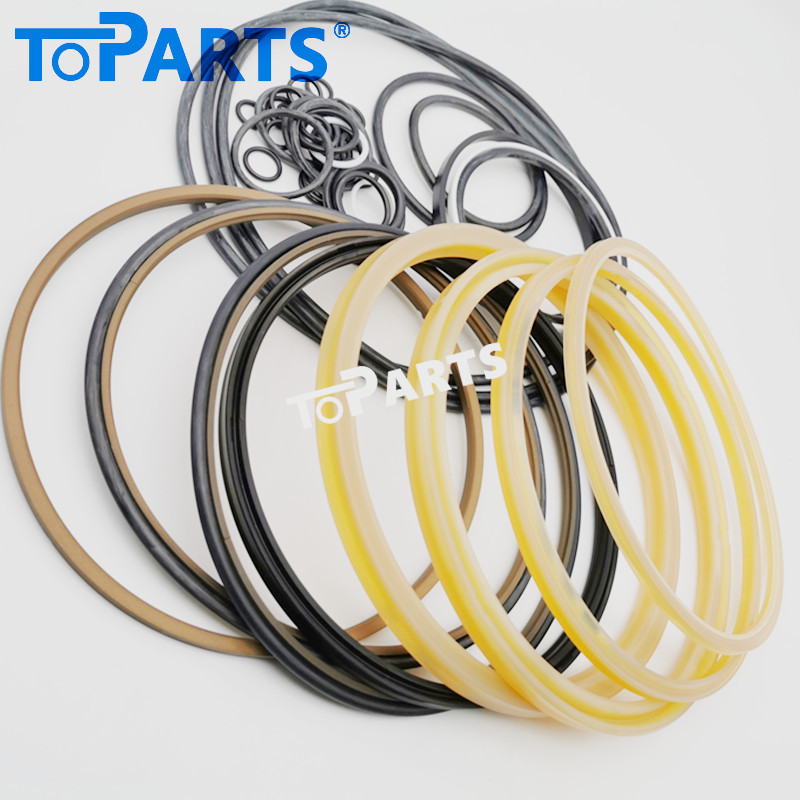

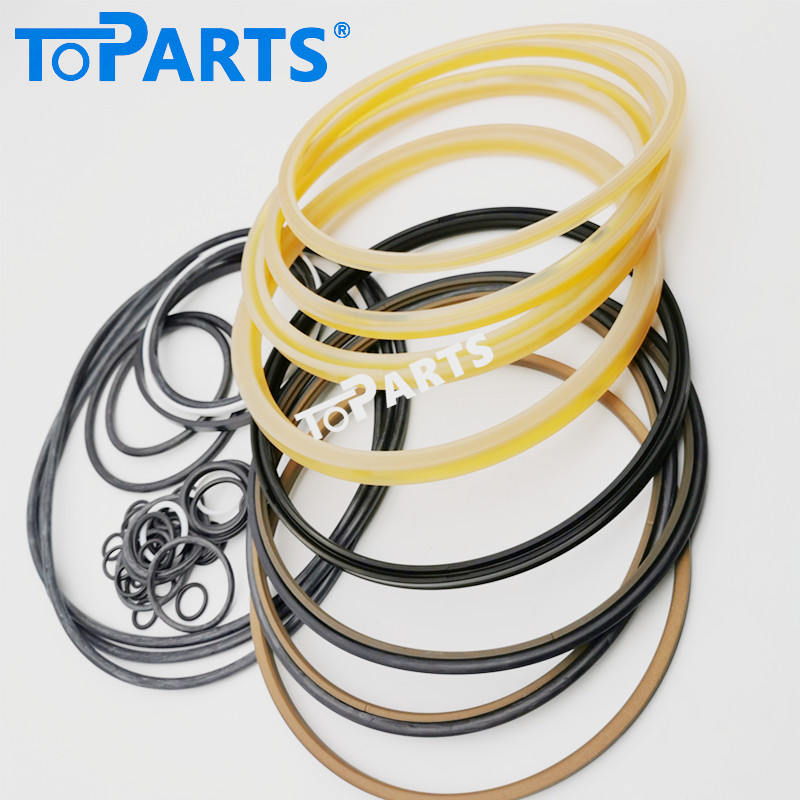

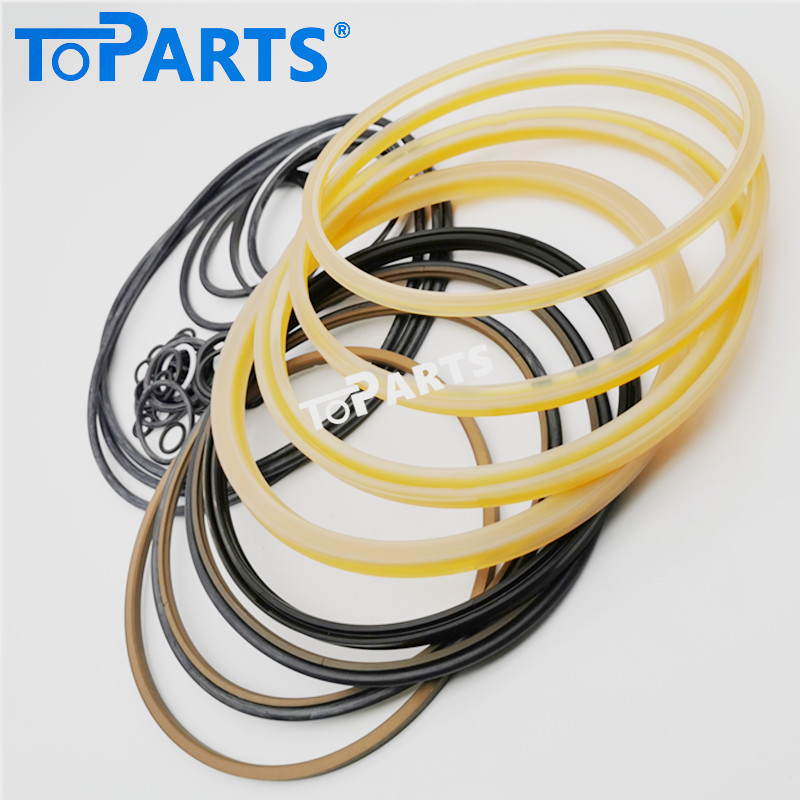

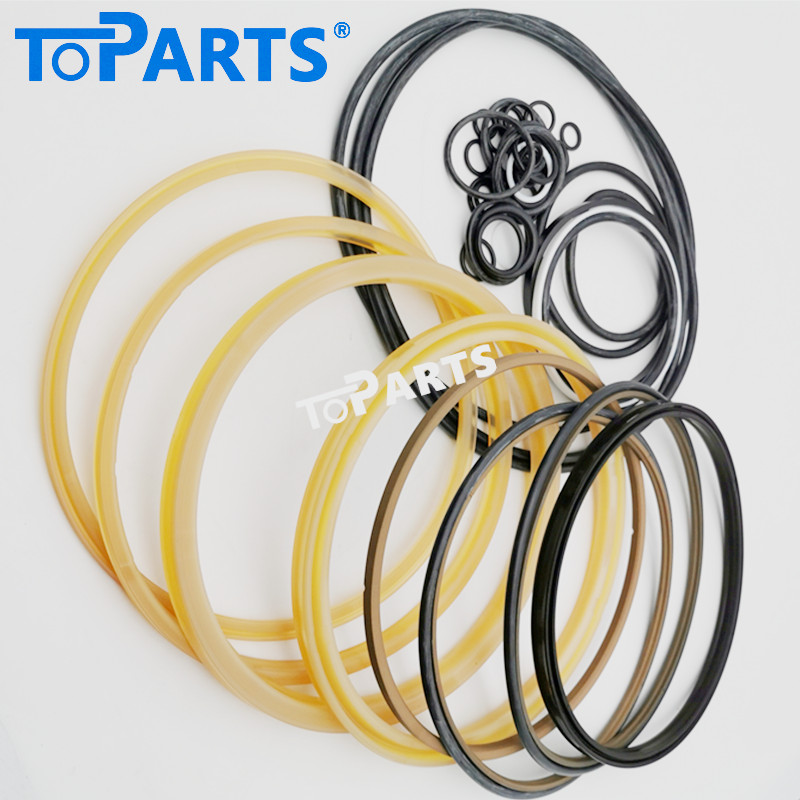

Premium AB502-0045 Hydraulic Breaker Service Repair Kit for Everdigm EHB50
Ensure the massive crushing power of your Everdigm EHB50 hydraulic hammer with the AB502-0045 seal repair kit. For heavy-duty excavators in the 40-55 ton class, the EHB50 requires specialized sealing solutions capable of handling extreme hydraulic surges and intense thermal loads.
At Toparts, our Everdigm-compatible kits are manufactured using premium-grade materials that provide an exact fit and exceptional longevity. This kit is designed to eliminate internal bypass and external leaks, keeping your heavy equipment productive on the most demanding quarry and demolition sites.
Product Highlights:
Perfect Precision: Tailored specifically for the Everdigm EHB50 (Part Number: AB502-0045).
High-Tenacity Materials: Features advanced Polyurethane (PU) with high abrasion resistance and NBR for superior oil and heat stability.
Gas Pressure Integrity: Precision-fit seals ensure the nitrogen chamber remains pressurized, maintaining the breaker's maximum impact energy.
Extreme Durability: Formulated to resist extrusion and wear even during long hours of continuous operation in hard rock.
Complete Overhaul Kit: Includes all necessary step seals, buffer seals, dust wipers, and specialized O-rings for a professional service.
Technical Specifications:
Brand Compatibility: Everdigm (Hanwoo)
Model: EHB50
Part Number: AB502-0045
Component Type: Heavy-Duty Hydraulic Breaker / Hammer
Materials: Premium PU, PTFE + Bronze, High-Temp NBR
Condition: 100% Brand New Industrial-Grade Aftermarket
