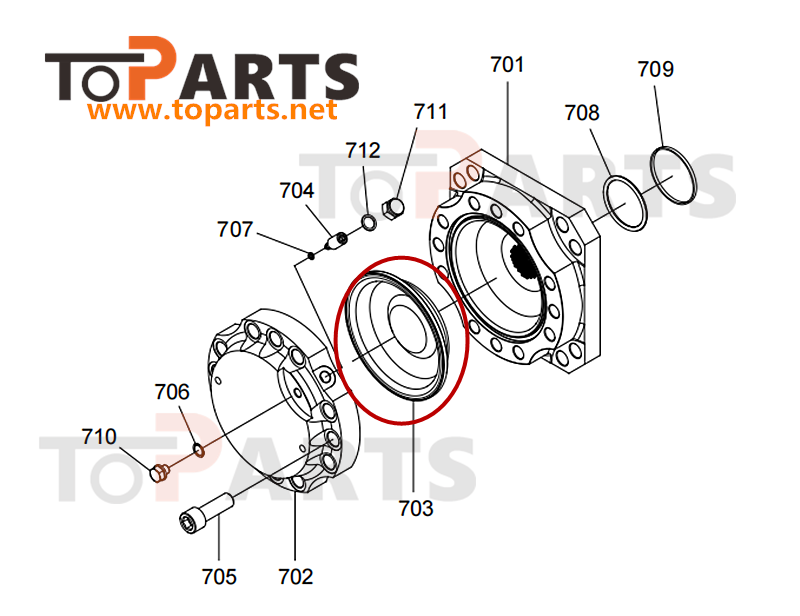

Parts list
|
ITEM |
PART NO. |
PART NAME |
QTY |
|
+ |
B220-9905 |
Accumulator Ass'y |
1 |
|
701 |
B220-3001 |
Accumulator Body |
1 |
|
702 |
B220-3007 |
Accumulator Cover |
1 |
|
703 |
B220-3006 |
Diaphragm |
1 |
|
704 |
A082-0060 |
Acc.Charging Valve |
1 |
|
705 |
AA011-0012 |
Hex.Socket Bolt |
12 |
|
706 |
S8000151 |
O-ring |
1 |
|
707 |
S8000051 |
O-ring |
1 |
|
708 |
S8000701 |
O-ring |
1 |
|
709 |
A052-0007 |
Back-up Ring |
1 |
|
710 |
A061-0035 |
Plug |
1 |
|
711 |
A061-0049 |
Cap |
1 |
|
712 |
S8000201 |
O-ring |
1 |
Product Description

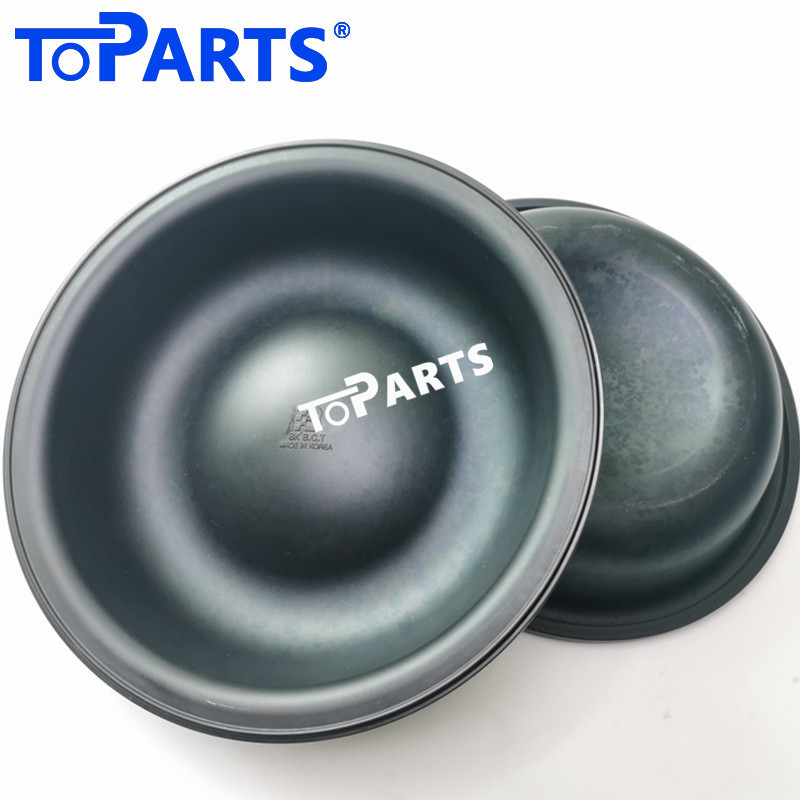

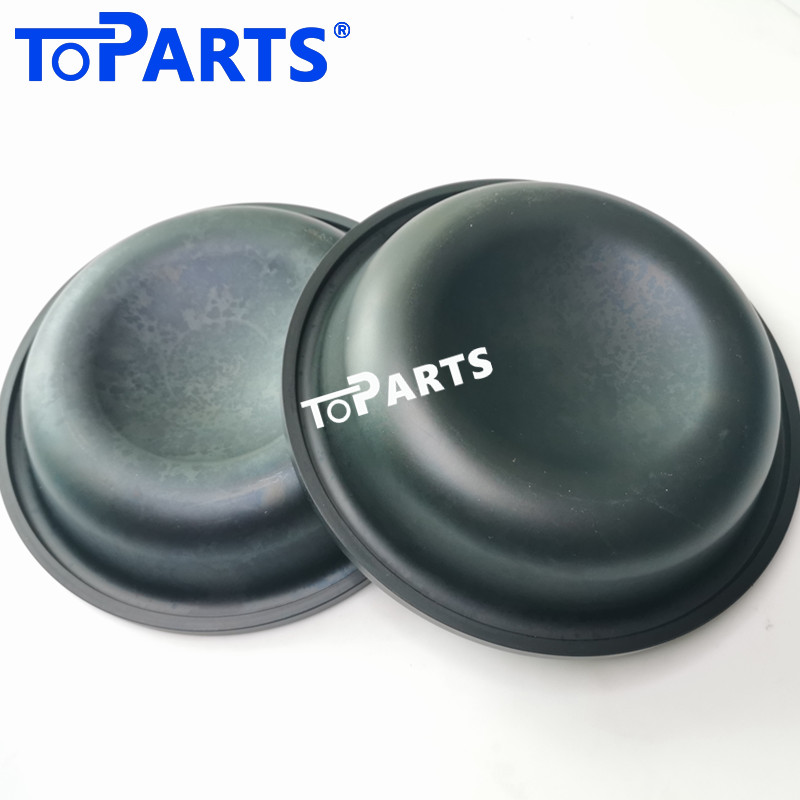

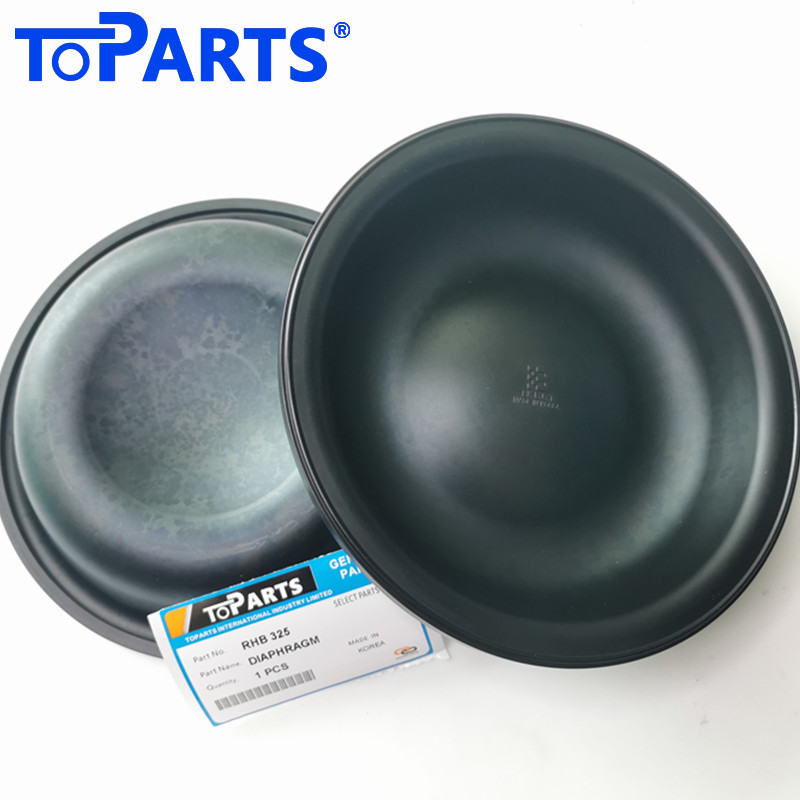

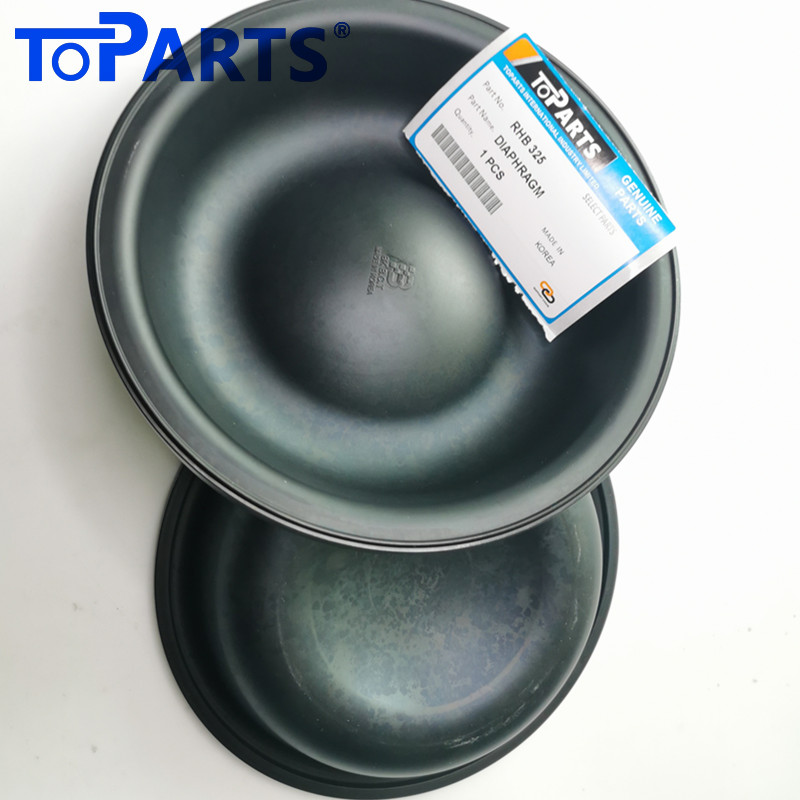

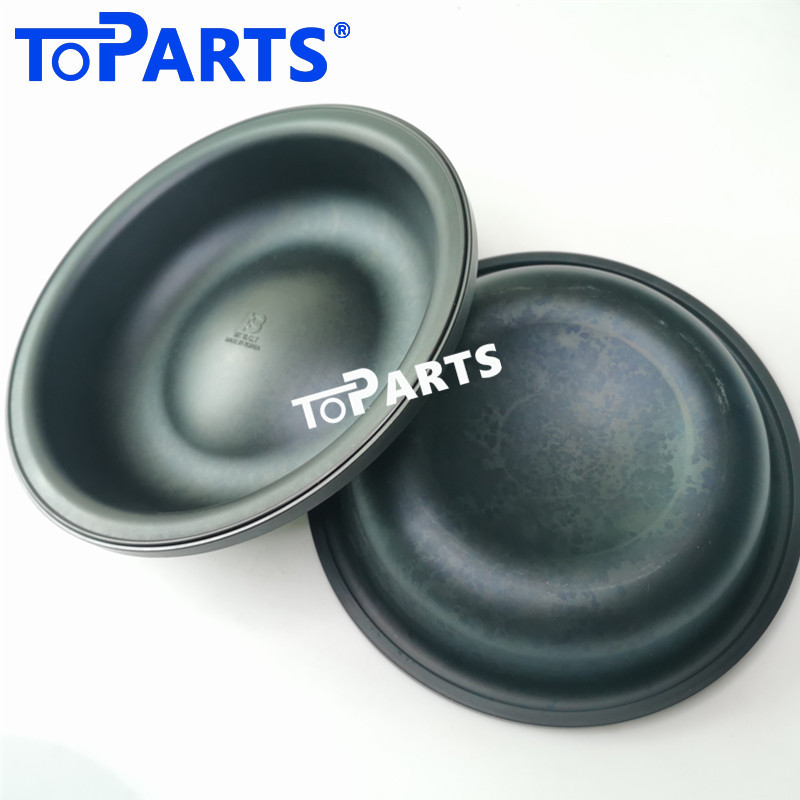

High-Performance B220-3006 Hydraulic Breaker Diaphragm for Everdigm EHB25 & RHB325
Optimize the impact frequency and energy of your Everdigm EHB25 and RHB325 hydraulic hammers with the B220-3006 premium diaphragm membrane. The diaphragm is a critical component of the accumulator, acting as a flexible barrier between the nitrogen gas and hydraulic oil. A worn or ruptured diaphragm leads to reduced hitting power and increased vibration, which can damage your excavator's hydraulic system.
At Toparts, we provide industrial-grade diaphragms manufactured from specialized reinforced rubber compounds. Our membranes are engineered to withstand millions of cycles under extreme pressure and temperature fluctuations.
Product Highlights:
Perfect Compatibility: Precision-molded for Everdigm EHB25 and RHB325 hydraulic breakers (Part Number: B220-3006).
Advanced Rubber Compound: Made from high-resilience, fabric-reinforced material that offers superior resistance to gas permeation and hydraulic oil degradation.
Restore Impact Power: Maintains consistent nitrogen pressure in the accumulator, ensuring your hammer delivers its maximum rated energy with every stroke.
Exceptional Fatigue Life: Formulated to endure high-frequency stretching and compression without cracking or losing elasticity.
Heat Resistance: Performs reliably even during continuous operation in high-temperature environments typical of heavy-duty demolition.
Technical Specifications:
Brand Compatibility: Everdigm (Hanwoo)
Models: EHB25, RHB325, RHB325-V, EHB25BA
Part Number: B220-3006
Component Type: Accumulator Diaphragm / Membrane
Material: Reinforced Special Purpose Rubber
Condition: 100% Brand New Aftermarket
