English

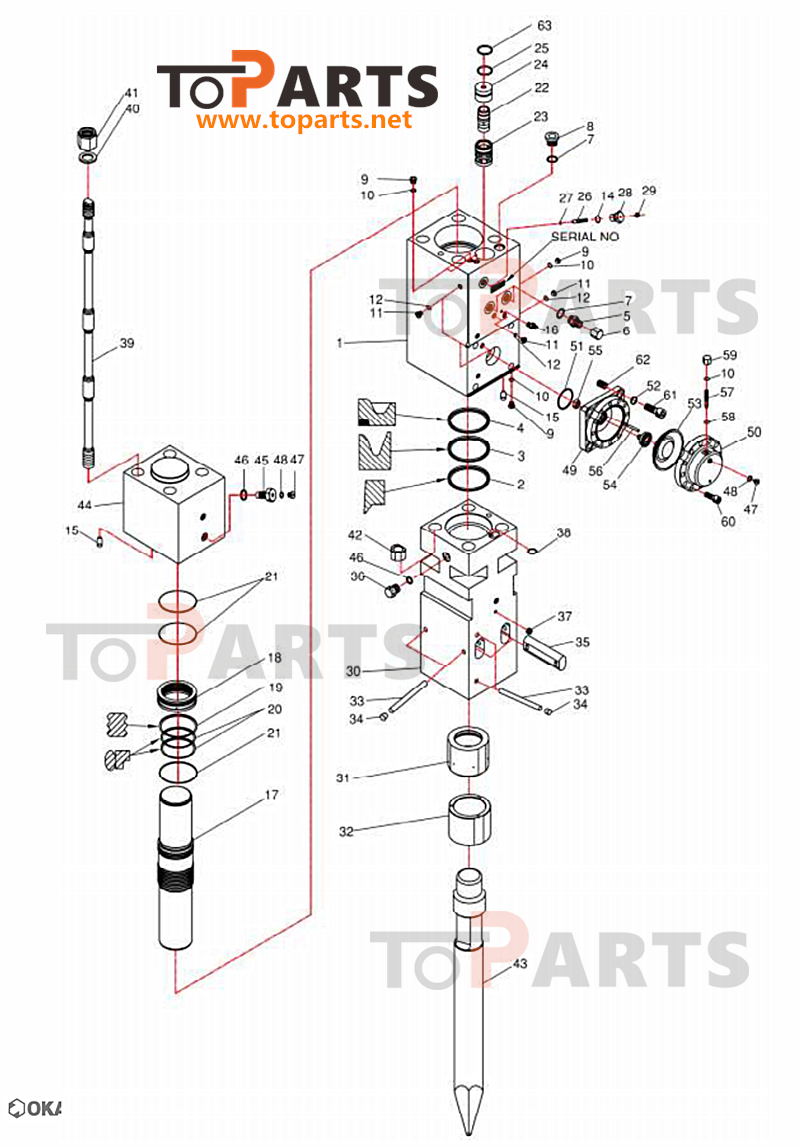

Parts list
|
No. |
Parts No. |
Part Name |
Q'ty |
No. |
Parts No. |
Part Name |
Q'ty |
|
1 |
HB260A0010 |
Cylinder |
1 |
48 |
HB260A0480 |
O-ring |
2 |
|
2 |
HB260A0020 |
Dust seal |
1 |
49 |
HB260A0490 |
Accumulator body |
1 |
|
3 |
HB260A0030 |
U-packing |
1 |
50 |
HB260A0500 |
Accumulator cover |
1 |
|
4 |
HB260A0040 |
Buffer-ring |
1 |
|
HB260A0501 |
Accumulator cover |
1 |
|
5 |
HB260A0051 |
Nipple |
2 |
51 |
HB260A0510 |
Seal |
1 |
|
6 |
HB260A0061 |
Dust cap |
2 |
52 |
HB260A0520 |
Washer |
4 |
|
7 |
HB260A0070 |
O-ring |
3 |
53 |
HB260A0530 |
Bladder |
1 |
|
8 |
HB260A0080 |
Plug |
1 |
54 |
HB260A0540 |
Valve |
1 |
|
9 |
HB260A0090 |
Plug |
4 |
55 |
HB260A0550 |
Nut |
1 |
|
10 |
HB260A0100 |
O-ring |
5 |
56 |
HB260A0560 |
Pin |
1 |
|
11 |
HB260A0110 |
Plug |
6 |
57 |
HB260A0570 |
Gas charging valve |
1 |
|
12 |
HB260A0120 |
O-ring |
6 |
58 |
HB260A0580 |
O-ring |
1 |
|
14 |
HB260A0140 |
O-ring |
1 |
59 |
HB260A0590 |
Cap |
1 |
|
15 |
HB260A0150 |
Pin |
2 |
60 |
HB260A0600 |
Cap screw |
12 |
|
16 |
HB260A0160 |
Grease nipple |
1 |
61 |
HB260A0610 |
Cap screw |
4 |
|
17 |
HB260A0170 |
Piston |
1 |
62 |
HB260A0620 |
Helisert |
4 |
|
18 |
HB260A0180 |
Cylinder sleeve |
1 |
63 |
HB260A0630 |
O-ring |
1 |
|
19 |
HB260A0190 |
X-ring |
1 |
64 |
HB065A0070 |
Plug |
2 |
|
20 |
HB260A0200 |
Step seal |
2 |
65 |
HB065A0220 |
O-ring |
1 |
|
21 |
HB260A0210 |
O-ring |
3 |
|
|
|
|
|
22 |
HB260A0220 |
Valve |
1 |
43 |
HB260AP430 |
Point chisel |
1 |
|
23 |
HB260A0230 |
Valve liner |
1 |
43 |
HB260AX430 |
Cross cut chisel |
1 |
|
24 |
HB260A0240 |
Valve plug |
1 |
43 |
HB260AE430 |
Flat end chisel |
1 |
|
25 |
HB025A0140 |
O-ring |
1 |
43 |
TP210-1200P |
Point chisel |
1 |
|
26 |
HB260A0260 |
Adjuster |
1 |
43 |
TP210-1200FX |
Cross cut chisel |
1 |
|
27 |
HB260A0270 |
O-ring |
1 |
43 |
TP210-1200E |
Flat end chisel |
1 |
|
28 |
HB260A0280 |
Adjuster case |
1 |
|
|
|
|
|
29 |
HB260A0290 |
Nut |
1 |
|
HB260A1010 |
Valve assy |
1 |
|
30 |
HB260A0300 |
Front cap |
1 |
|
HB260A1020 |
Adjuster assy |
1 |
|
|
HB260A0301 |
Front cap |
1 |
|
HB260A1030 |
Side rod assy |
4 |
|
31 |
HB260A0310 |
Shank bushing |
1 |
|
|
|
|
|
|
HB260A0311 |
Shank bushing |
1 |
|
HB260A1040 |
Gas valve body assy |
1 |
|
32 |
HB260A0320 |
Front cap bushing |
1 |
|
HB260A1050 |
Accumulator |
1 |
|
|
HB260A0321 |
Front cap bushing |
1 |
|
HB260A1060 |
Acc valve assy |
1 |
|
33 |
HB260A0330 |
Shaft |
4 |
|
HB260A1070 |
Acc gas charging valve assy |
1 |
|
34 |
HB260A0340 |
Shaft retainer |
4 |
|
HB260A10C0 |
Seal kit |
1 |
|
35 |
HB260A0350 |
Chisel set pin |
2 |
|
|
|
|
|
36 |
HB260A0360 |
Plug |
1 |
|
|
|
|
|
37 |
HB260A0370 |
Plug |
1 |
|
|
|
|
|
38 |
HB260A0380 |
O-ring |
1 |
|
|
|
|
|
39 |
HB260A0390 |
Side rod |
4 |
|
|
|
|
|
40 |
HB260A0400 |
Back nut washer |
4 |
|
|
|
|
|
41 |
HB260A0410 |
Back nut |
4 |
|
|
|
|
|
42 |
HB260A0420 |
Side rod front nut |
4 |
|
|
|
|
|
44 |
HB260A0440 |
Back cap |
1 |
|
|
|
|
|
45 |
HB260A0450 |
Gas valve |
1 |
|
|
|
|
|
46 |
HB260A0460 |
O-ring |
2 |
|
|
|
|
|
47 |
HB260A0470 |
Cover cap |
2 |
|
|
|
|

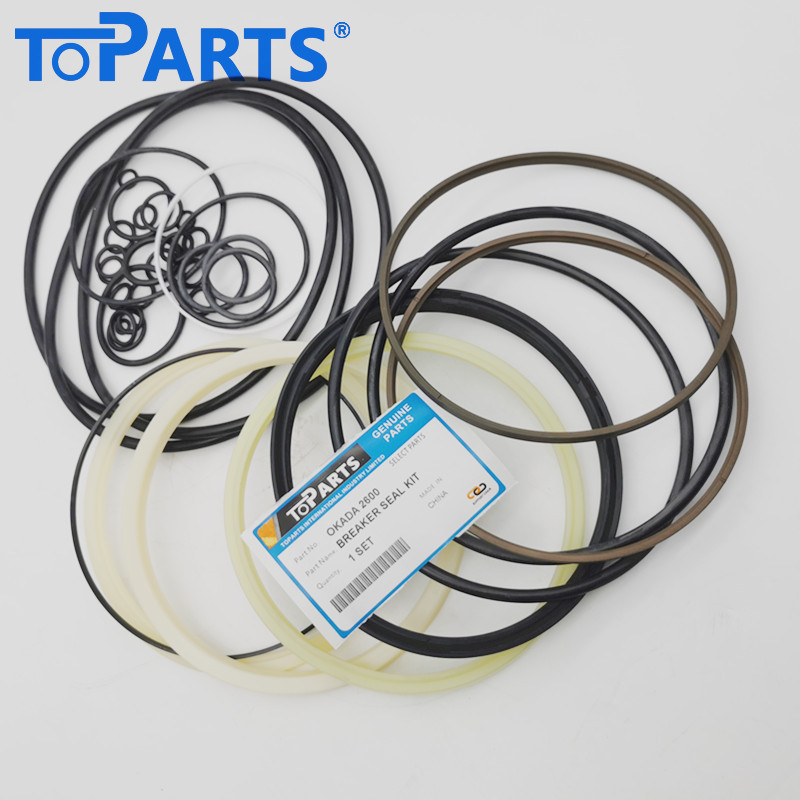

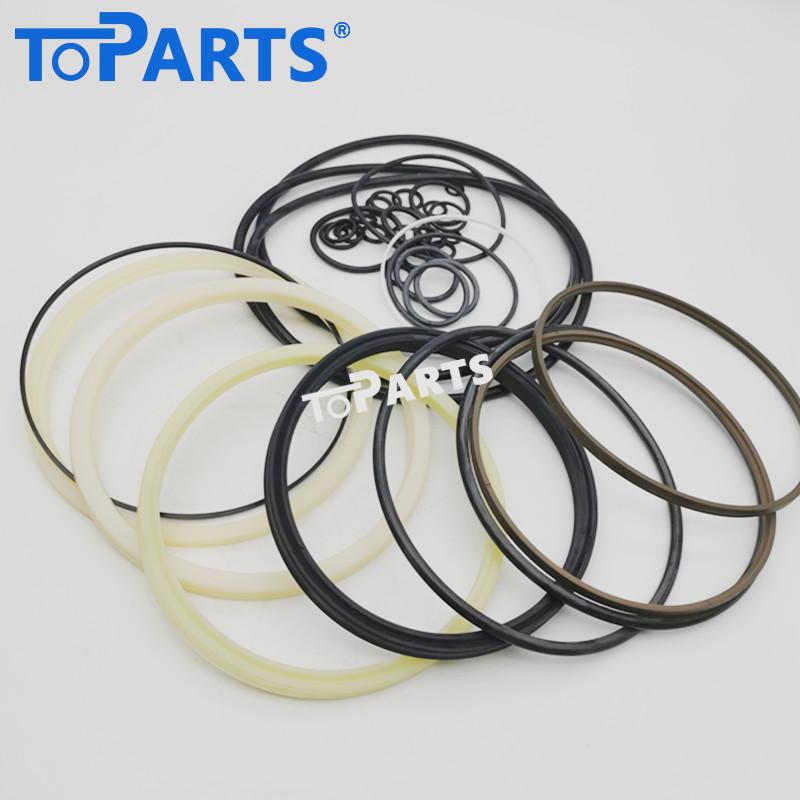

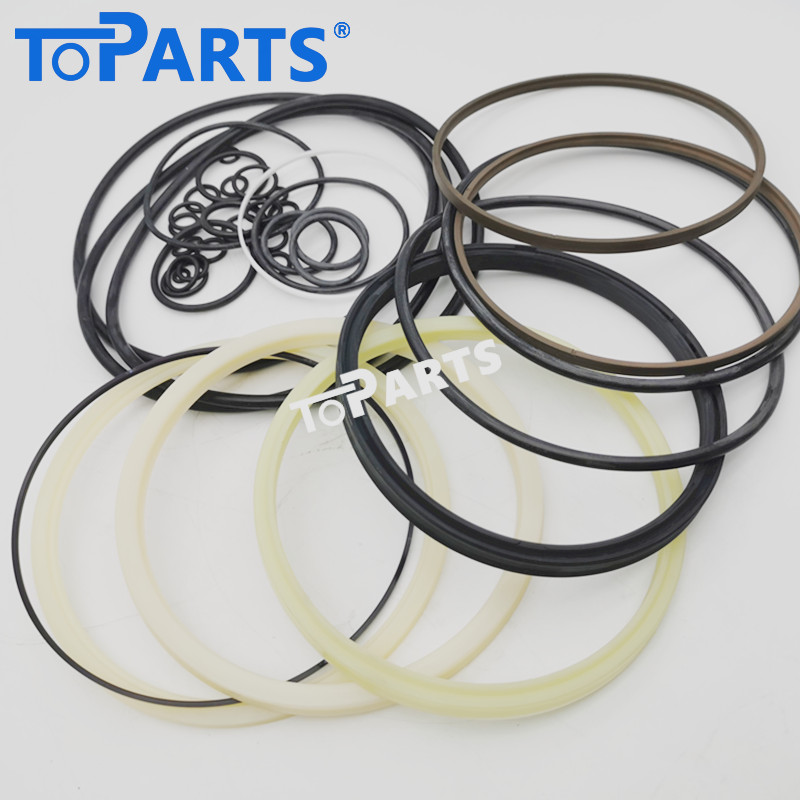

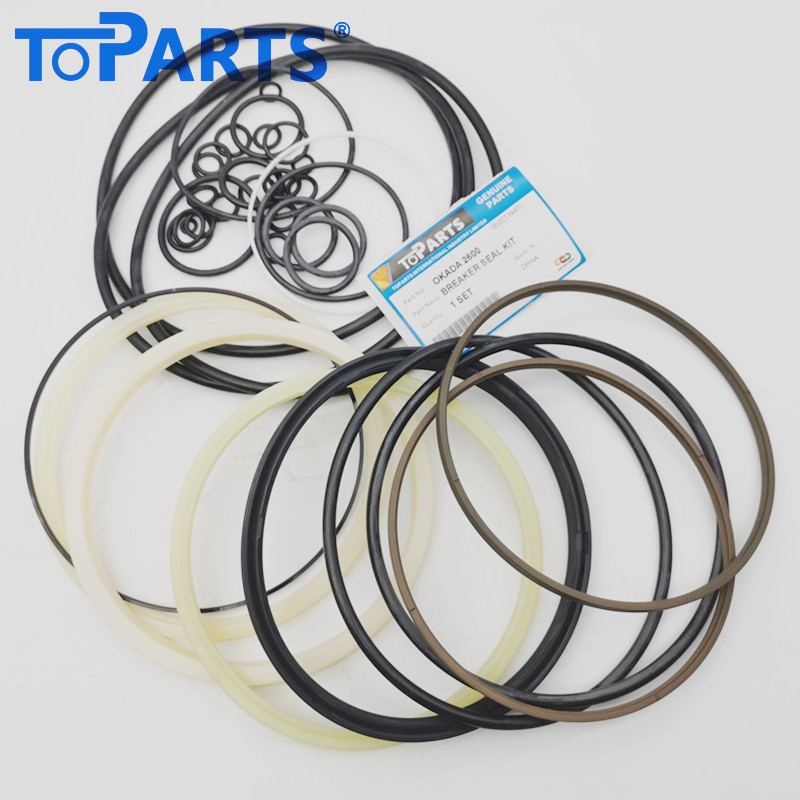

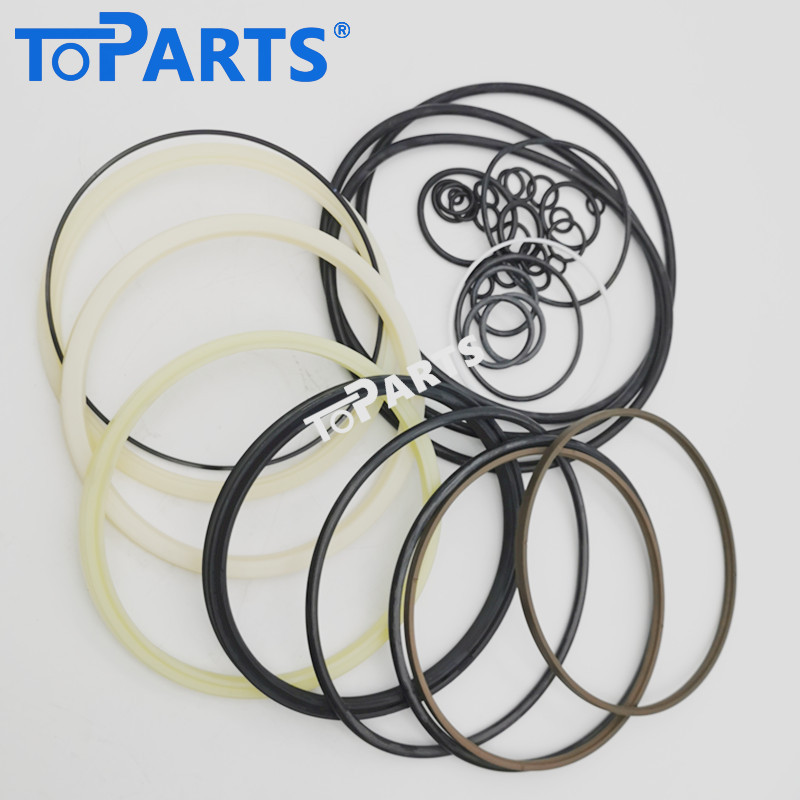

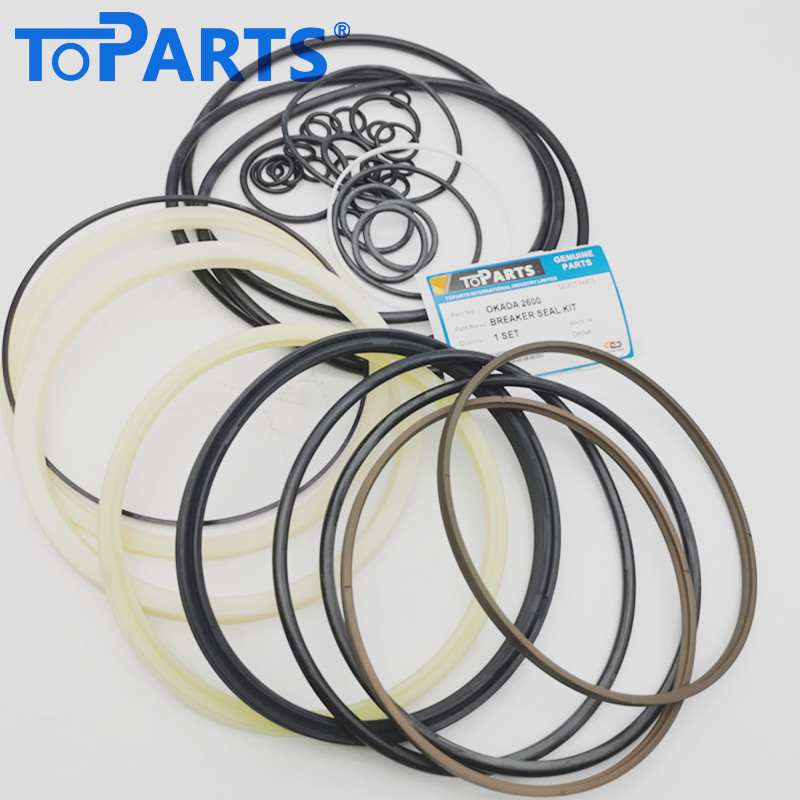

Toparts HB260A10C0 Hydraulic Breaker Seal Kit for Okada 2600
Restore the heavy-duty striking power and hydraulic efficiency of your equipment with the Toparts HB260A10C0 Hydraulic Breaker Seal Kit. Specifically engineered for the Okada 2600 (TOP2600) Hydraulic Hammer, this premium service kit is the professional solution for eliminating leaks, maintaining internal pressure, and extending the operational life of your high-impact tools.
High-Precision Sealing for Okada Heavy Series Hammers
The Okada 2600 is a powerhouse in the demolition industry, known for its extreme hitting power and durability in quarrying and large-scale concrete demolition. Operating under high hydraulic pressure and intense vibration, the internal seals are subject to rapid wear. Toparts has developed the HB260A10C0 kit to provide a precision-matched, direct replacement that ensures your Okada 2600 maintains its factory-rated impact energy and striking frequency.
Key Features and Benefits:
Direct OEM Replacement: Fully compatible with part number HB260A10C0, ensuring an exact, leak-proof fit for the Okada 2600 model without the need for modifications during installation.
Superior Material Quality: Manufactured from high-performance Polyurethane (PU) and premium PTFE/NBR compounds. These materials offer exceptional resistance to high-pressure hydraulic fluids and friction-generated heat.
Restores Striking Power: By preventing internal fluid bypass, this kit ensures the piston receives maximum hydraulic pressure, restoring the full breakout force required for the toughest jobs.
Advanced Contaminant Shielding: Features heavy-duty wiper seals designed to scrape away grit and dust, protecting the internal cylinder and piston from expensive scoring and premature wear.
Complete Overhaul Solution: This comprehensive kit includes all vital sealing elements—rod seals, buffer seals, wiper seals, and O-rings—required for a professional-grade hydraulic service.
Built for Longevity: Engineered to perform consistently in extreme temperatures and abrasive environments, significantly reducing unplanned downtime.
Product Specifications:
Feature:Details
Part Number:HB260A10C0
Compatible Model:Okada 2600 / TOP2600
Component Type:Full Hydraulic Sealing Service / Repair Kit
Material Grade:Industrial Strength PU, PTFE, and NBR
Application:Heavy Construction, Quarrying, and Mining
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a leading specialist in the manufacturing of high-end sealing solutions for the global construction and mining industries. We understand that in the field, reliability equals profitability. Our HB260A10C0 seal kit provides the perfect balance of OEM-standard quality and exceptional aftermarket value, ensuring your Okada 2600 remains a reliable asset in your fleet.
